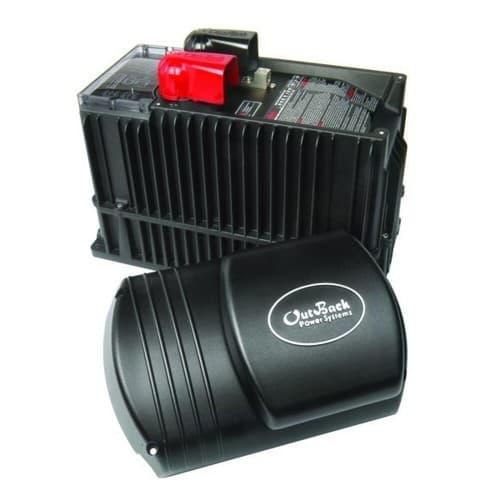

OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.

Product Highlights

• True sine wave output
• Intelligent battery charging
• Modular stackable design
• Corrosion-resistant internal components
• Weather-resistant sealed chassis
• Standard 5-year warranty
• Product Specifications | Download
• Product Manual | Download

	Sealed Models			Sealed Models	Sealed Models	Vented Models			Vented Models	Vented Models
		FX2012EMT	FX2024EMT	FX2348EMT	VFX2612EM	VFX3024EM	VFX3048EM
Nominal DC Input Voltage	12 VDC	24 VDC	48 VDC	12 VDC	24 VDC	48 VDC
Continuous Power Rating at 25 C	2000 VA	2000 VA	2300 VA	2600 VA	3000 VA	3000 VA
AC Voltage/Frequency	230 VAC 50 Hz	230 VAC 50 Hz	230 VAC 65 Hz	230 VAC 50 Hz	230 VAC 50 Hz	230 VAC 50 Hz
Continuous AC RMS Output at 25 C	8.7 amps AC	8.7 amps AC	10.0 amps AC	11.3 amps AC	13.0 amps AC	13.0 amps AC
Full Idle Power	20 Watts	20 Watts	23 Watts	20 Watts	20 Watts	23 Watts
Search	6 Watts	6 Watts	6 Watts	6 Watts	6 Watts	6 Watts
Typical Efficiency	90%	92%	93%	90%	92%	93%
Typical Total Harmonic Distortion	2%	2%	2%	2%	2%	2%
Maximum	5%	5%	5%	5%	5%	5%
Output Voltage Regulation	2%	2%	2%	2%	2%	2%
Peak Maximum Output Current	28 amps AC	35 amps AC	35 amps AC	28 amps AC	35 amps AC	35 amps AC
RMS	20 amps AC	25 amps AC	25 amps AC	20 amps AC	25 amps AC	25 amps AC
Surge AC Overload Capability	4600 VA	5750 VA	5750 VA	4600 VA	5750 VA	5750 VA
5 Second	4000 VA	4800 VA	4800 VA	4000 VA	4800 VA	4800 VA
30 Minutes	2500 VA	3100 VA	3100 VA	3100 VA	3300 VA	3300 VA
AC Input Current Maximum	30 amps AC	30 amps AC	30 amps AC	30 amps AC	30 amps AC	30 amps AC
AC Input Voltage Range (MATE Adjustable)	160 to 300 VAC	160 to 300 VAC	160 to 300 VAC	160 to 300 VAC	160 to 300 VAC	160 to 300 VAC
AC Input Frequency Range	44.0 to 56.0 Hz	44.0 to 56.0 Hz	44.0 to 56.0 Hz	44.0 to 56.0 Hz	44.0 to 56.0 Hz	44.0 to 56.0 Hz
Neutral-Ground Bond Switching	Yes	Yes	Yes	Yes	Yes	Yes
DC Input Range	10.5 to 17.0 VDC	21.0 to 34.0 VDC	42.0 to 68.0 VDC	10.5 to 17.0 VDC	21.0 to 34.0 VDC	42.0 to 68.0 VDC
Continuous Battery Charge Output	100 amps DC	55 amps DC	35 amps DC	120 amps DC	85 amps DC	45 amps DC
Temperature Range Rated	0C to 50C (power derated above 25C)			0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)			0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)
Maximum	-25C to 60C			-25C to 60C	-25C to 60C	-25C to 60C			-25C to 60C	-25C to 60C
Warranty	Standard 5 year			Standard 5 year	Standard 5 year	Standard 5 year			Standard 5 year	Standard 5 year
Unit Weight	62 lbs (29 kg)			62 lbs (29 kg)	62 lbs (29 kg)	61 lbs (28 kg)			61 lbs (28 kg)	61 lbs (28 kg)
Shipping	67 lbs (31 kg)			67 lbs (31 kg)	67 lbs (31 kg)	67 lbs (31 kg)			67 lbs (31 kg)	67 lbs (31 kg)
Unit Dimensions (H x W x L)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)			13 x 8.25 x 16.25" (33 x 21 x 41 cm)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)	12 x 8.25 x 16.25" (30 x 21 x 41 cm)			12 x 8.25 x 16.25" (30 x 21 x 41 cm)	12 x 8.25 x 16.25" (30 x 21 x 41 cm)
Shipping	21.75 x 13 x 22" (55 x 33 x 56 cm)			21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)			21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)
