Home Outback Power Outback Inverter Chargers Outback Power, FX2012EMT, Mobile sealed inverter/charger, 2.0 kW, 12 VDC, 230 VAC 50 Hz, 100 Amp charger, 30 Amp AC input (Turbo and RTS Included)

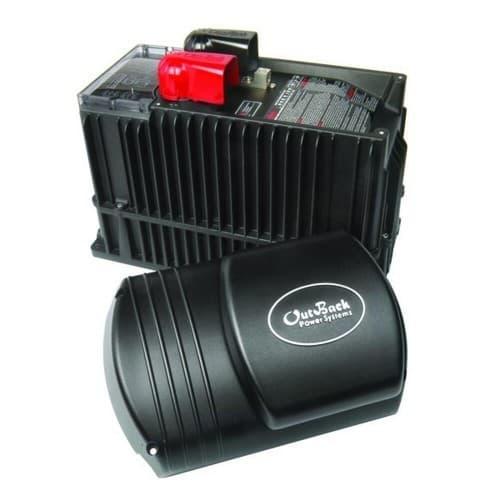

Outback Power, FX2012EMT, Mobile sealed inverter/charger, 2.0 kW, 12 VDC, 230 VAC 50 Hz, 100 Amp charger, 30 Amp AC input (Turbo and RTS Included)

Outback Power, FX2012EMT, Mobile sealed inverter/charger, 2.0 kW, 12 VDC, 230 VAC 50 Hz, 100 Amp charger, 30 Amp AC input (Turbo and RTS Included)

  • Model: FX2012EMT
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 2nd - Jul 8th
  • In Stock
  • Out of Stock
  • Price: $2,280.41  $1,754.16
    Would you like to add these items to your order?
    Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $748.06  $575.43

    Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $246.14  $189.34

    Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $468.64  $360.49

    OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.

    Product Highlights
    • True sine wave output
    • Intelligent battery charging
    • Modular stackable design
    • Corrosion-resistant internal components
    • Weather-resistant sealed chassis
    • Standard 5-year warranty
    • Product Specifications | Download
    • Product Manual | Download
    Sealed ModelsSealed ModelsSealed ModelsVented ModelsVented ModelsVented Models
    FX2012EMTFX2024EMTFX2348EMTVFX2612EMVFX3024EMVFX3048EM
    Nominal DC Input Voltage12 VDC24 VDC48 VDC12 VDC24 VDC48 VDC
    Continuous Power Rating at 25 C2000 VA2000 VA2300 VA2600 VA3000 VA3000 VA
    AC Voltage/Frequency230 VAC 50 Hz230 VAC 50 Hz230 VAC 65 Hz230 VAC 50 Hz230 VAC 50 Hz230 VAC 50 Hz
    Continuous AC RMS Output at 25 C8.7 amps AC8.7 amps AC10.0 amps AC11.3 amps AC13.0 amps AC13.0 amps AC
    Full Idle Power 20 Watts 20 Watts 23 Watts 20 Watts 20 Watts 23 Watts
    Search 6 Watts 6 Watts 6 Watts 6 Watts 6 Watts 6 Watts
    Typical Efficiency90%92%93%90%92%93%
    Typical Total Harmonic Distortion2%2%2%2%2%2%
    Maximum5%5%5%5%5%5%
    Output Voltage Regulation 2% 2% 2% 2% 2% 2%
    Peak Maximum Output Current28 amps AC35 amps AC35 amps AC28 amps AC35 amps AC35 amps AC
    RMS20 amps AC25 amps AC25 amps AC20 amps AC25 amps AC25 amps AC
    Surge AC Overload Capability4600 VA5750 VA5750 VA4600 VA5750 VA5750 VA
    5 Second4000 VA4800 VA4800 VA4000 VA4800 VA4800 VA
    30 Minutes2500 VA3100 VA3100 VA3100 VA3300 VA3300 VA
    AC Input Current Maximum30 amps AC30 amps AC30 amps AC30 amps AC30 amps AC30 amps AC
    AC Input Voltage Range (MATE Adjustable)160 to 300 VAC160 to 300 VAC160 to 300 VAC160 to 300 VAC160 to 300 VAC160 to 300 VAC
    AC Input Frequency Range44.0 to 56.0 Hz44.0 to 56.0 Hz44.0 to 56.0 Hz44.0 to 56.0 Hz44.0 to 56.0 Hz44.0 to 56.0 Hz
    Neutral-Ground Bond SwitchingYesYesYesYesYesYes
    DC Input Range10.5 to 17.0 VDC21.0 to 34.0 VDC42.0 to 68.0 VDC10.5 to 17.0 VDC21.0 to 34.0 VDC42.0 to 68.0 VDC
    Continuous Battery Charge Output100 amps DC55 amps DC35 amps DC120 amps DC85 amps DC45 amps DC
    Temperature Range Rated 0C to 50C (power derated above 25C)0C to 50C (power derated above 25C)0C to 50C (power derated above 25C) 0C to 50C (power derated above 25C)0C to 50C (power derated above 25C)0C to 50C (power derated above 25C)
    Maximum -25C to 60C-25C to 60C-25C to 60C -25C to 60C-25C to 60C-25C to 60C
    Warranty Standard 5 yearStandard 5 yearStandard 5 year Standard 5 yearStandard 5 yearStandard 5 year
    Unit Weight 62 lbs (29 kg)62 lbs (29 kg)62 lbs (29 kg) 61 lbs (28 kg)61 lbs (28 kg)61 lbs (28 kg)
    Shipping 67 lbs (31 kg)67 lbs (31 kg)67 lbs (31 kg) 67 lbs (31 kg)67 lbs (31 kg)67 lbs (31 kg)
    Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)12 x 8.25 x 16.25" (30 x 21 x 41 cm)12 x 8.25 x 16.25" (30 x 21 x 41 cm)
    Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)
