Home Renewable Energy Outback Power Outback Inverter Chargers Outback, FP2 VFXR3524A-300, FLEXpower TWO 7.0 kW, 24 VDC solution, dual VFXR3524A-01, prewired AC & DC boxes with AC bypass 250 Amp DC breakers, 125 Amp charge controller breakers, 80 Amp PV breaker, HUB 10.3, RTS, FLEXnet DC, surge protectors plus two FLEXmax 100 MPPT controllers, MATE3s and brackets. Listed to UL1741-SA

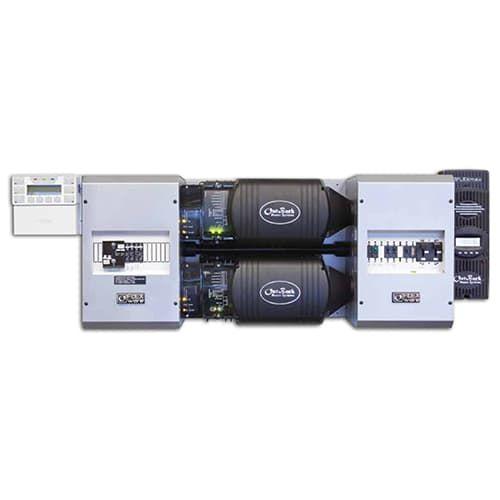

Outback, FP2 VFXR3524A-300, FLEXpower TWO 7.0 kW, 24 VDC solution, dual VFXR3524A-01, prewired AC & DC boxes with AC bypass 250 Amp DC breakers, 125 Amp charge controller breakers, 80 Amp PV breaker, HUB 10.3, RTS, FLEXnet DC, surge protectors plus two FLEXmax 100 MPPT controllers, MATE3s and brackets. Listed to UL1741-SA

Outback, FP2 VFXR3524A-300, FLEXpower TWO 7.0 kW, 24 VDC solution, dual VFXR3524A-01, prewired AC & DC boxes with AC bypass 250 Amp DC breakers, 125 Amp charge controller breakers, 80 Amp PV breaker, HUB 10.3, RTS, FLEXnet DC, surge protectors plus two FLEXmax 100 MPPT controllers, MATE3s and brackets. Listed to UL1741-SA

  • Model: FP2 VFXR3524A-300
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Apr 19th - Apr 25th
  • In Stock
  • Out of Stock
  • Price: $11,209.19  $8,622.45
    Would you like to add these items to your order?
    Outback, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $385.01  $296.16

    Outback, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $610.88  $469.91

    Outback, HUB4, Four Port, up to 4 devices and one MATE  $200.21  $154.01

    Product Highlights
    • Factory tested, pre-wired and pre-configured systems
    • Fast installation - just hang on the wall with the bracket (included) and make connections
    • Off-grid and grid-tied functionality in one flexible system
    • Powerful system in a compact, space-saving footprint
    • Field-upgradable software
    • Ample AC and DC breaker provisions
    • GridZero technology effectively lets users “zero out” the utility grid if enough renewables are present, reducing or even eliminating grid dependence
    • Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
    • All components carry necessary ETL certifications
    • FLEXpower TWO FXR Datasheet | Download
    • 60Hz FXR (A) Series Datasheet | Download
    • 50Hz FXR (E) Series Datasheet | Download
    • FLEXmax 100 Datasheet | Download
    • MATE3s Datasheet | Download
    • Warranty Information - English / Spanish | Download
    • Warranty Information - French / German | Download
    • FLEXpower TWO FXR STEP File | Download
    OutBack's pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value.
    • 7 models available for 120VAC or 230VAC applications, ranging from 5000W to 7200W
    • 50Hz/60Hz selectable for regional diversity
    • Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
    • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
    • Field-upgradability eliminates system down-time for critical updates
    • Remote system control and monitoring available through any internet-enabled device with OPTICS RE
    The FLEXpower TWO is an ideal full-sized solution for residential and commercial applications including homes, farms, small businesses, and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
