Manufacturer Info

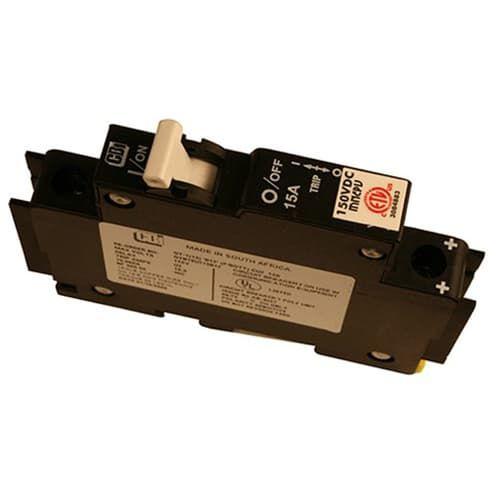

150VDC din rail mount breaker (13mm wide).
Note: Branch circuit rated 489A
MidNites breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
Listed for US & Canada
Note: Branch circuit rated 489A
MidNites breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
- Environmental Rating - Type 1 (Indoor)
- DC Voltage Rating - 150VDC
- Wire Size Range - 14 to 6 AWG
- Width - .51 in (13mm)
- Number of poles - 1
- 10,000 AIC
- MNEPV1 to MNEPV63 Dim Drawing | Download
- MNEPV - Series Circuit Breakers Data Sheet | Download
- Q-Series Breaker Specifications | Download
- Breaker and Busbar Torque Specs | Download
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
Listed for US & Canada
