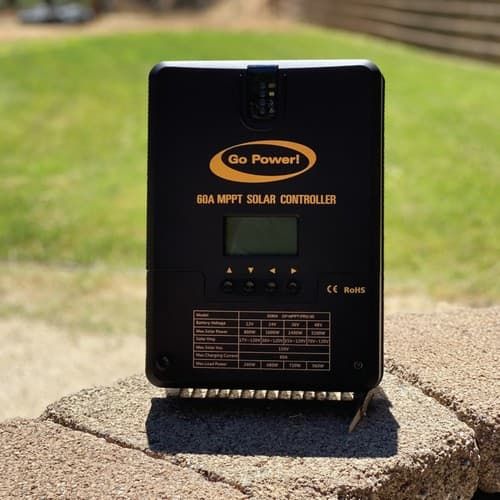

60 Amp MPPT Solar Controller GP-MPPT-PRO-60
Go Power!'s largest solar controller. This 60 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.
Model: GP-MPPT-PRO-60 Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 4 battery charging profiles.
- The most efficient MPPT controller for RVs
- Compatible with all battery types, including Lithium
- Maximizes all power from your solar modules
- Easy-to-read back-lit digital remote display
- Stackable: add additional controllers to expand your solar array
- Included in our larger, multi-panel solar kits
- 5-year warranty
- MPPT-PRO-60 Manual | Download
- MPPT-PRO-60 Spec Sheet | Download
Optional Accessories - Surface-mounted remote display; shows the charge current to the battery, battery voltage and battery-state-of-charge (SOC) - (GP-MPPT-PRO-R)
- Surface-mounted remote display; shows the charge current to the battery, battery voltage and battery-state-of-charge (SOC)
- Bluetooth Wireless Technology Dongle; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view
| System Voltage | 12/24/36/48V (auto-recognition) |
| Temperature Compensation | -18mV/ C (12V systems), -36mV/ C (24V systems), -54mV/ C (36V systems), -72mV/ C (48V systems) |
| Controller Operating Battery Voltage Range (min. - max.) [V] | 9V - 65V |
| Max Charge Current | 60A |
| Float Charge (Default= SEALED) | 13.8/27.6V (25 C) |
| Main Charge (Default= SEALED) | 14.1/28.2V (25 C), 0.5h Daily |
| Boost Charge (Default- SEALED) | 14.4/28.8V (25 C), 2h, Activation: Battery Voltage <12.3/24.6V |
| Equalization Charge (Flooded) | 14.8/29.8 (25 C),2h, Activation: Battery Voltage <12.1/24.2V (at least every 30 days) |
| Over-Voltage Protection | 15.5/31.0V |
| Max Panel Input Voltage | 150Voc |
| Max PV Power Input | 1040W/12V; 2080W/24V; 3120W/36V; 4160W/48V |
| Min PV Voltage Input | 16V (12V Systems) / 33V (24V Systems) |
| Idle Self-Consumption | 0.7W (60mA typical at 12.0V, 30mA typical at 24.0V) |
| Grounding | Negative Grounding |
| Ambient Temperature | -40 to +60 C |
| Battery Type | Lead Acid (Sealed, Gel, Flooded), Lithium |
| Max Wire Cross Section | AWG 2 |
| Dimensions | 11.22 x 8.07 x 3.66 inches (285 x 205 x 93 mm) |
| Weight | 3.6kg / 7.9lbs |
| Type of Protection | IP32 |
| Warranty | 5 Years |
