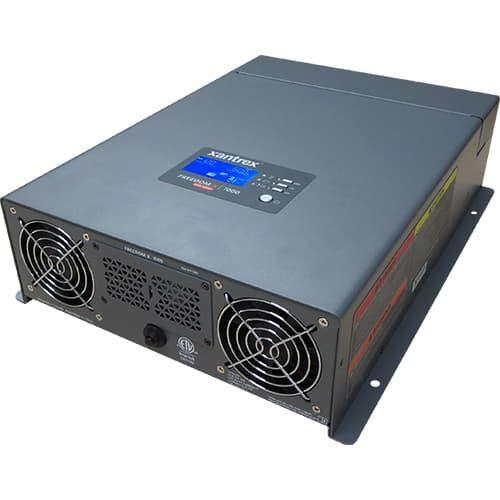

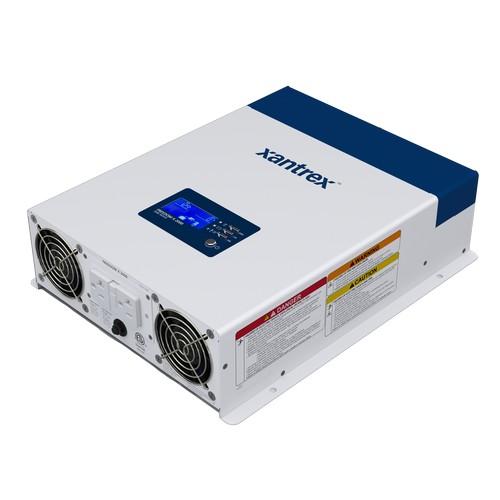

Xantrex, 817-2000-21, Freedom X Power Inverter, 2000W, 24V

  • Model: 817-2000-21
  • GTIN: 00715535904807
  • Manufactured by: Xantrex
  • Condition: New
  • Estimated Delivery: May 26th - Jun 1st
  • In Stock

$1,466.30 $1,127.92

Manufacturer Info

12V, 1000W, 2000W, 3000W - 120 Vac / 60 Hz 24V, 2000W - 120 Vac / 60 Hz

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4 F - 104 F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Product Features
  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring
  • Data Sheet - English | Download
  • FREEDOM X 2000 24V Data Sheet - English | Download
  • Data Sheet - French | Download
  • Owners Guide - English | Download
  • Owners Guide - French | Download
  • Freedom X/ XC Remote Panel Owners Guide - English | Download
  • Freedom X/ XC Remote Panel Owners Guide - French | Download
  • Freedom X/ XC GFCI Option Installation Manual - English | Download
  • Freedom X/ XC GFCI Option Installation Manual - French | Download
  • Warranty Policy (North America) | Download
  • Warranty Policy (Rest of the world) | Download
Models Part number Input voltage AC output
Freedom X 1000 817-1000 12V Hardwire (Optional GFCI)
Freedom X 2000 817-2000 12V Hardwire (Optional GFCI)
Freedom X 3000 817-3000 12V Hardwire (Optional GFCI)
Freedom X 2000 24V 817-2000-21 24V Hardwire (Optional GFCI)
Accessories Part number
Freedom X Bluetooth Remote Panel 808-0817-02
Freedom X/ XC remote panel with 25' Cable 808-0817-01
GFCI Option 808-9817
Communication cable 25 ft 31-6257-00
Communication cable 50 ft 31-6262-00
