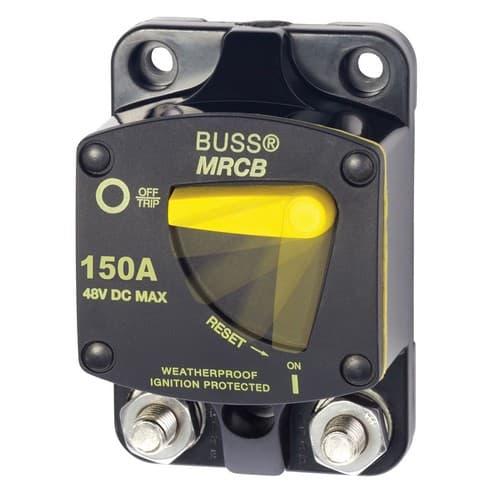

Blue Sea Systems, 7148, 187-Series Circuit Breaker - Surface Mount 150A

  • Model: 7148
  • GTIN: 00632085071486
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$135.80 $104.46

Manufacturer Info

Features
  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Dimensioned Drawing
* Do not use as a switch where high inrush currents are expected.
Specifications
Amperage150A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque75 in-lb (8.47 Nm)
Interrupt Capacity5000A @ 12V3000A @ 24V1500A @ 42V
Minimum Operating Temperature-40 C
Maximum Operating Temperature85 C
Case MaterialThermoset Polyester
Circuit Breaker ClassType III - switchable/manual reset - trip free
Mounting HoleAccept #10 (M5) Screw
Terminal Stud Size5/16" - 18
Weight0.58lb (0.26 kg)
