The images shown are for illustration purposes only and may not be an exact representation of the product

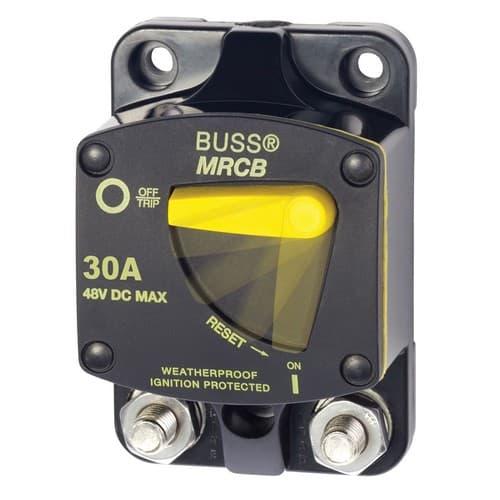

Blue Sea Systems, 7136, 187-Series Circuit Breaker - Surface Mount 30A
- Model: 7136
- GTIN: 00632085071363
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Oct 12th - Oct 18th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features - Combines switching and circuit protection into a single device*
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Dimensioned Drawing
* Do not use as a switch where high inrush currents are expected.
Specifications |
---|
Amperage | 30A |
Maximum Voltage | 48V DC |
Mounting | Surface Mount |
Circuit Breaker Type | Thermally responsive Bi-metal blade |
Terminal Stud Torque | 75 in-lb (8.47 Nm) |
Interrupt Capacity | 5000A @ 12V3000A @ 24V1500A @ 42V |
Minimum Operating Temperature | -40 C |
Maximum Operating Temperature | 85 C |
Case Material | Thermoset Polyester |
Circuit Breaker Class | Type III - switchable/manual reset - trip free |
Mounting Hole | Accept #10 (M5) Screw |
Terminal Stud Size | 5/16" - 18 |
Weight | 0.58lb (0.26 kg) |
