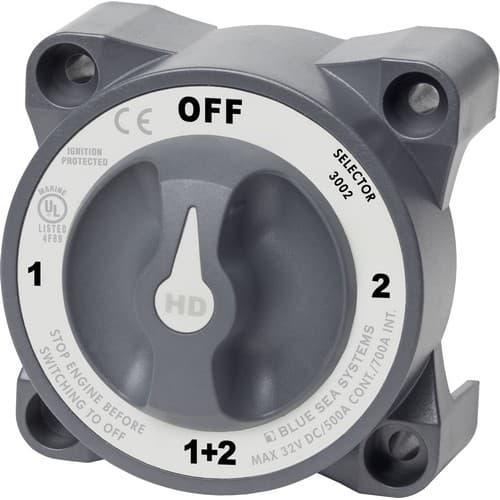

Blue Sea Systems, 3002, HD-Series Heavy Duty Selector Battery Switch
- Model: 3002
- GTIN: 00632085030025
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Apr 17th - Apr 23rd
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Switches isolated battery banks to all loads or combines battery banks to all loads - Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected - safe for installation aboard gasoline powered boats

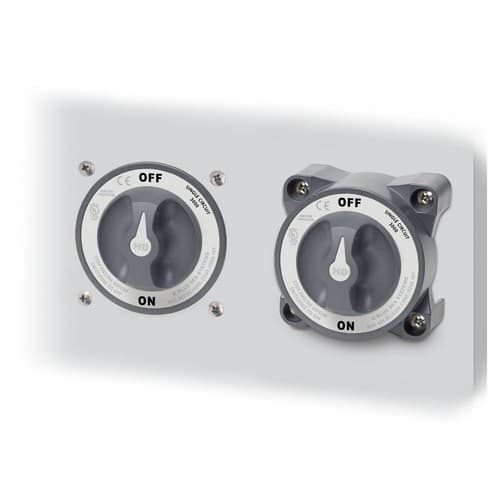

- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm2) battery cables
- Instructions

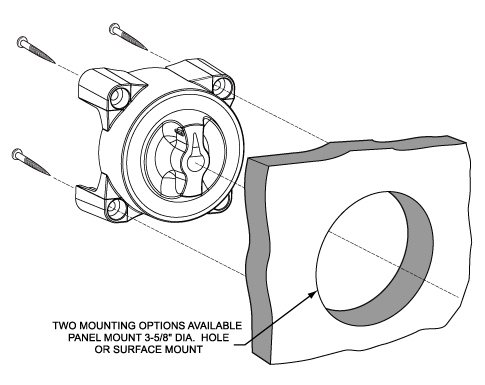

- Mounting Diagram
| Specifications |
|---|
| Switch Type | Selector 4 Position |
| Color | Grey |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1600A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
| Mounting Holes | Accept 1/4" (M6) Screw |

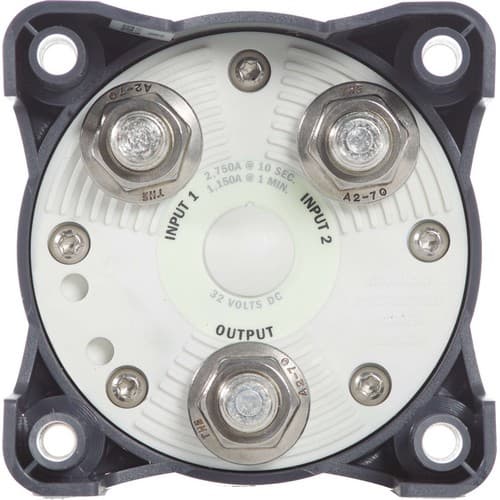

| Terminal Stud Size | 1/2" (M12) |
| Weight | 1.25lb (0.57 kg) |
