Busbars

150, 250 & 600 Amps

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

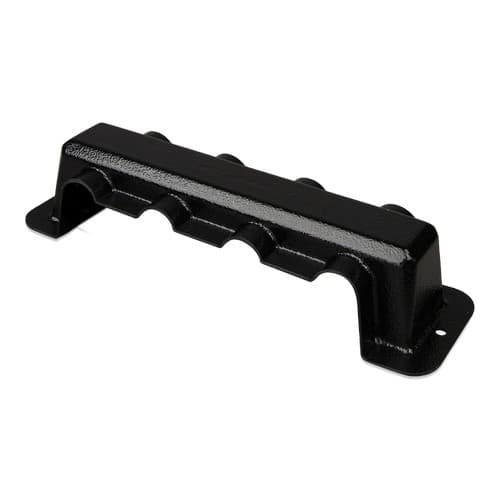

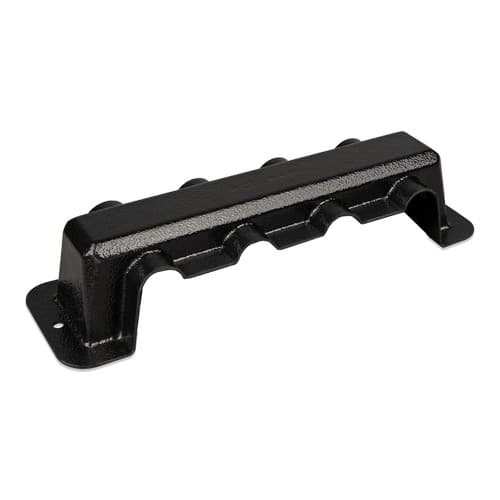

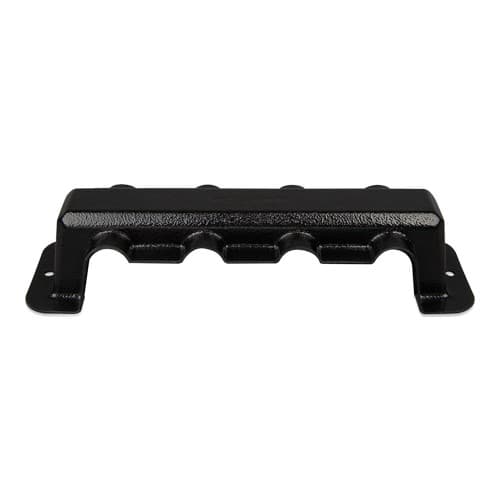

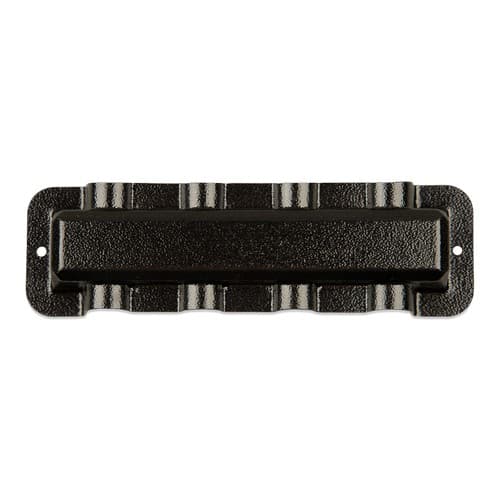

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available

• 150A / 70V - 4 high current connections
• 150A / 70V - 6 high current connections

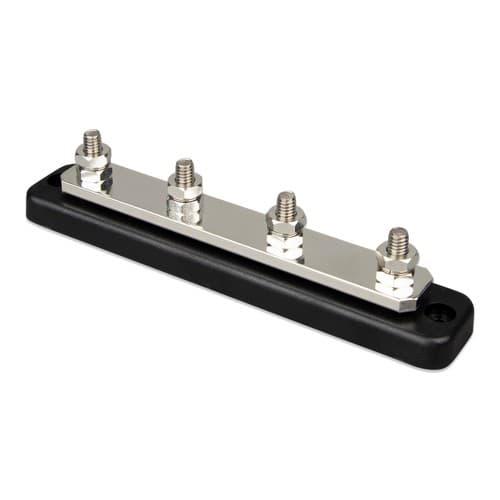

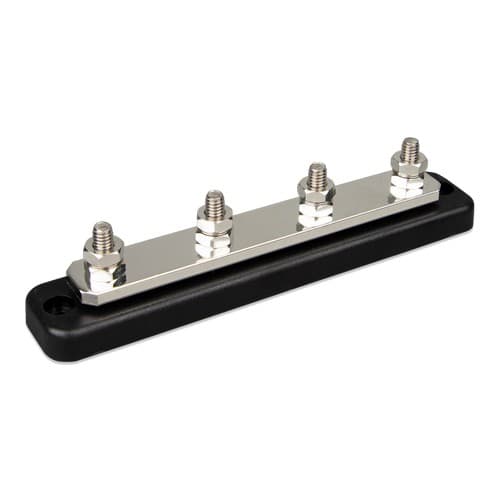

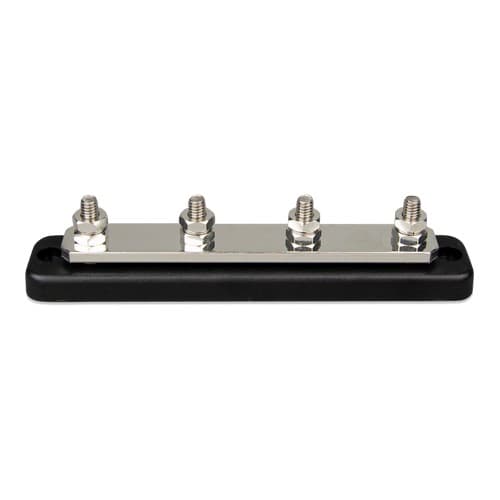

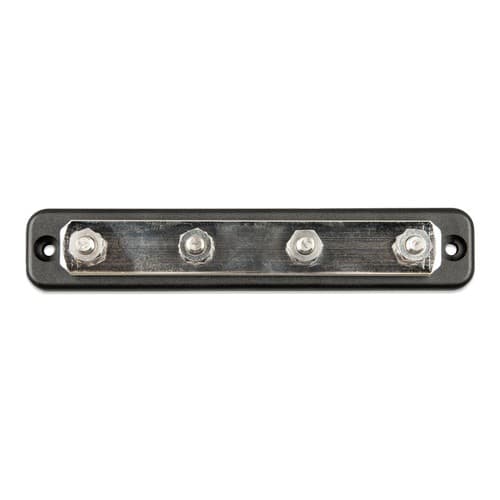

• 250A / 70V - 4 high current connections
• 600A / 70V - 4 high current connections and 8 low current connections
• 600A / 70V - 8 high current connections and 8 low current connections
• Busbar 150 A | Download
• Busbar 250 A | Download
• Busbar 600 A | Download

For more technical information and for the busbar dimensions see the datasheet.
