Busbars150, 250 & 600 Amps
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

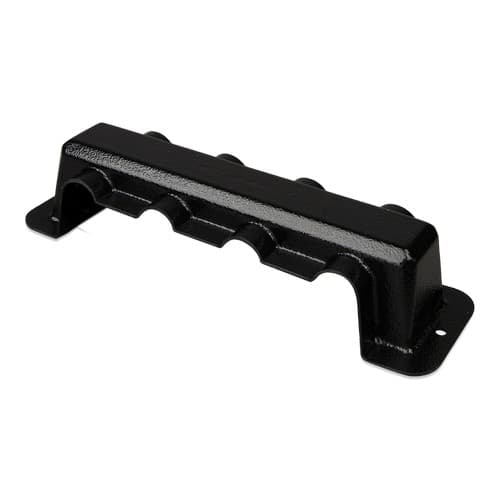

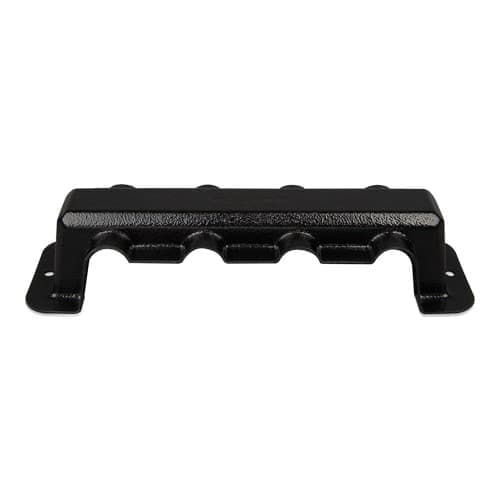

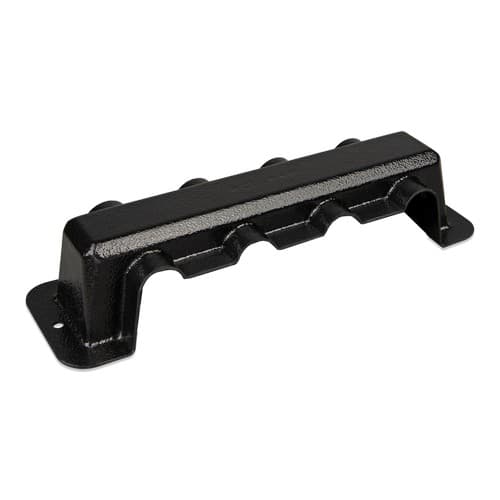

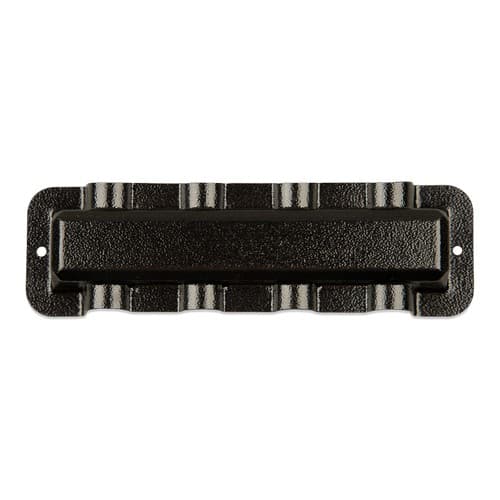

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

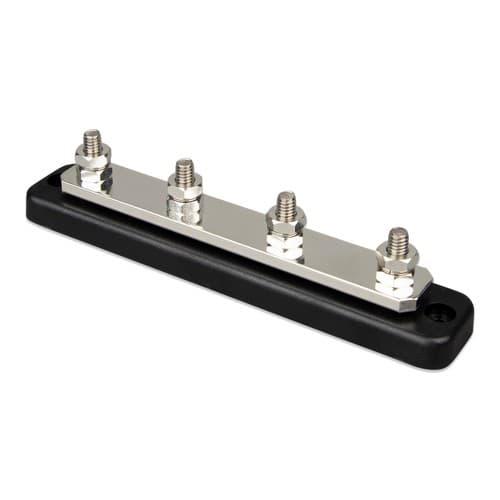

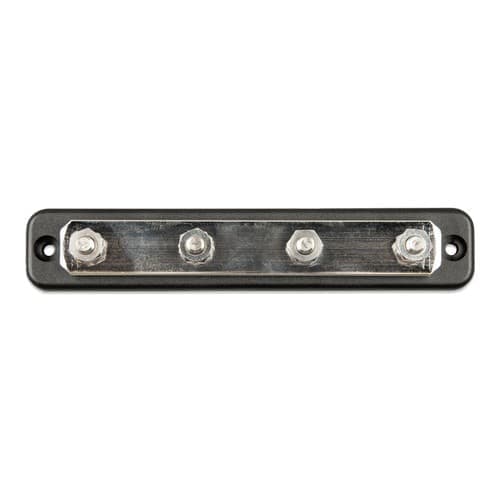

Available - 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 250A / 70V - 4 high current connections
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
- Busbar 150 A | Download
- Busbar 250 A | Download
- Busbar 600 A | Download
For more technical information and for the busbar dimensions see the datasheet.
