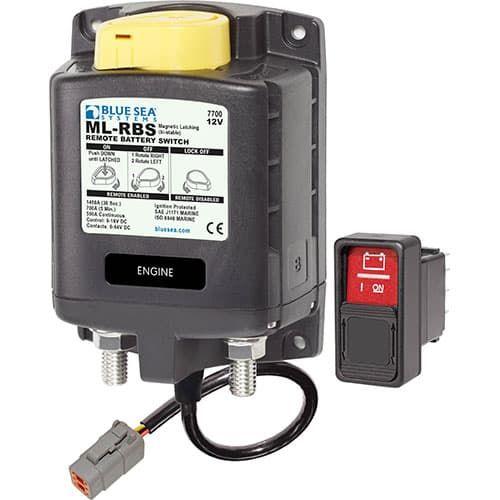

Blue Sea Systems, 7700100, ML-RBS Remote Battery Switch 12V

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7700100, ML-RBS Remote Battery Switch 12V

Model: 7700100
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Oct 25th - Oct 31st
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$290.27 $223.29

Manufacturer Info

Other products

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

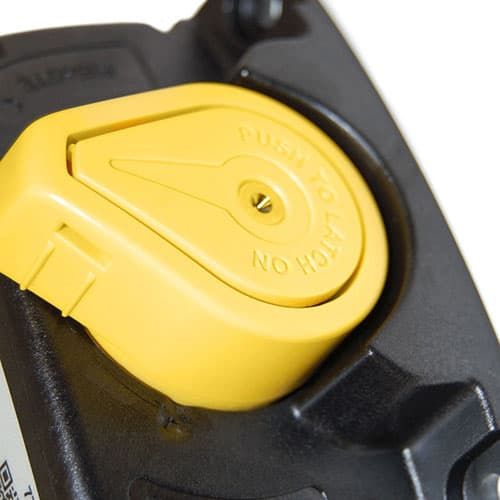

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
LED output to remotely indicate switch state - requires optional LED
3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7? 8" (22 mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads
Instructions | Download
Wiring Diagram | Download
Dimension Drawing | Download

Specifications
Control Circuit Connection	Deutsch DTM
Nominal Voltage	12V DC
Coil Function	Bi-Stable
Mounting	#10
Amperage Operating Current	0mA
Terminal Stud Torque	140 in-lb (15.82 Nm)
Control Circuit Voltage	9-16V DC
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1450A DC
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	60 C
Cable Size to Meet Ratings	2x (4/0)
Live Current Switching	300A @ 12V DC
Master Control Switch Capability	No
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18in (29.97 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.75lb (0.79 kg)
