The images shown are for illustration purposes only and may not be an exact representation of the product

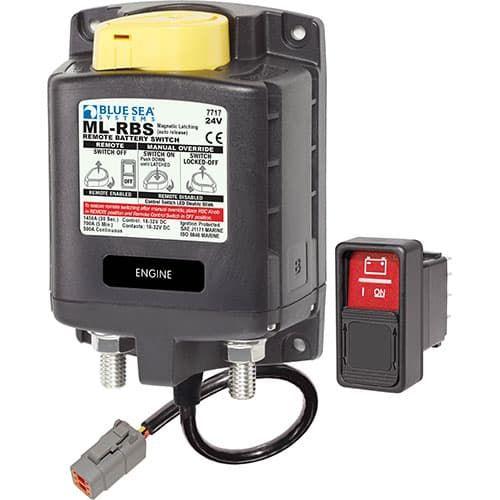

Blue Sea Systems, 7717100, ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

  • Model: 7717100
  • GTIN: 00632085077174
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$355.19 $273.22

Manufacturer Info

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7? 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads
  • Wiring Diagram | Download
  • Instructions | Download
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired 13mA when ON
Specifications
Control Circuit Connection Deutsch DTM
Nominal Voltage 24V DC
Manual Control Yes
Coil Function Auto-Releasing
Mounting #10
Amperage Operating Current 8mA when OFF
Amperage Operating Current when changing state <4A (40 ms)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Control Circuit Voltage 20.2 to 32.9V DC
Continuous Rating 500A
Intermittent Rating 700A (5 min)
Cranking Rating 30 sec 1450A DC
Minimum Operating Temperature -10 C
Maximum Operating Temperature 60 C
Cable Size to Meet Ratings 2x (4/0)
Live Current Switching 300A @ 12V DC
Master Control Switch Capability Yes
Mechanical Endurance 100,000 Cycles
Switching Cycles 100000
Terminal Ring Diameter Clearance 1.18in (29.97 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 2.07lb (0.94 kg)
Included
Qty PN Product
1 2155 SPDT Remote Control Contura Switch - ON-ON
Optional Accessories
1147 Remote Control Panel
1148 Remote Control Panel
9160 ML Series Link Bus
