500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations - Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7? 8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
- Wiring Diagram | Download
- Instructions | Download

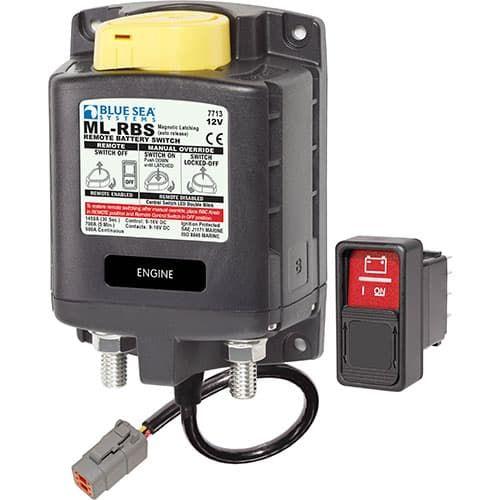

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
Specifications |
Control Circuit Connection | Deutsch DTM |
Nominal Voltage | 12V DC |
Coil Function | Auto-Releasing |
Mounting | #10 |
Amperage Operating Current | 8mA when OFF | 13mA when ON
Amperage Operating Current when changing state | <7A (40 ms) |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Control Circuit Voltage | 10.1 to 16.5V DC |
Continuous Rating | 500A |
Intermittent Rating | 700A (5 min) |
Cranking Rating 30 sec | 1450A DC |
Minimum Operating Temperature | -10 C |
Maximum Operating Temperature | 60 C |
Cable Size to Meet Ratings | 2x (4/0) |
Live Current Switching | 300A @ 12V DC |
Master Control Switch Capability | Yes |
Mechanical Endurance | 100,000 Cycles |
Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
Terminal Stud Length | 0.875in (22.23 mm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 2.07lb (0.94 kg) |
Included |
Qty | PN | Product |
1 | 2155 | SPDT Remote Control Contura Switch - ON-ON |
Optional Accessories |
1520 | 360 Panel Blank ML-Contura Switch |
9160 | ML Series Link Bus |
