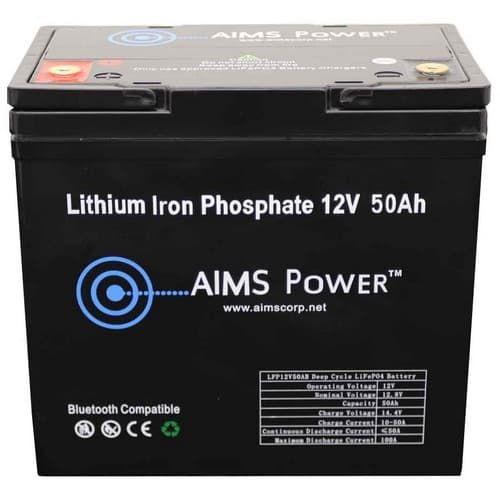

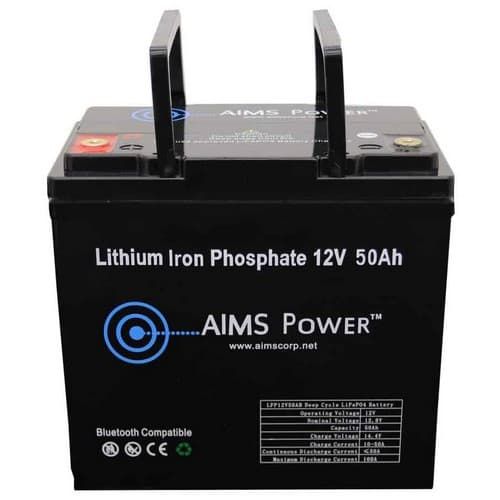

lectrical Specifications | LFP12V50A |
Nominal Voltage | 12.8V |
Nominal Capacity (at .5C, 77F) | 50Ah |
Minimum Capacity (at .5C, 77F) | 47.5Ah |

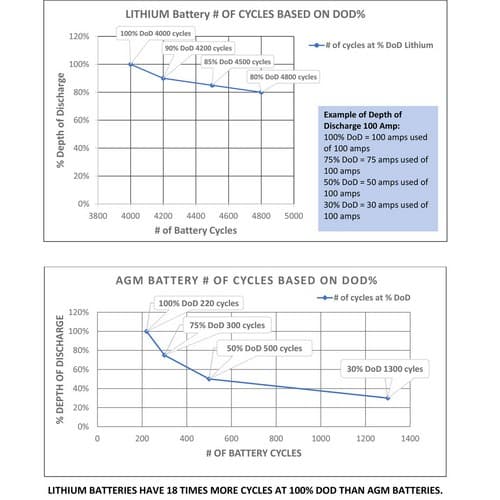

Expected Cycle Life | >4000 cycles w/1C charge and discharge rate, at 77F, 80% DOD |
Operating Specifications |
Charge Method | Smart charger, constant current, constant voltage |
Charge Voltage Range (Max 14.6V) | 14.4 -14.6V |
Continuous Charge Current | 50A Max |
Charge Temperature | 32 F to 113 F |
Continuous Discharge Current | 50A Max |
Peak Instant Discharge Current (10 secs) | 100A |
Over Voltage Shutdown | 15.6 +/-.2V |
Discharge Cut-off Voltage | 8V =/- .5V |
Discharge Temperature | -4 F to 149 F (battery will not shut off below -4 F) |
Storage Temperature | -4 F to 113 F |
Self Disharge (stored at 50% SOC) | < 3%/month |
Watt hours | 600 watt hours |
Physical Specifications |
Battery Dimensions | 9"L x 5.5"W x 9"H |
Unit Weight: 17.75 lb | 15.5 |
Shipped Weight: 19 lb | 18 |
Group Size | 1250 |

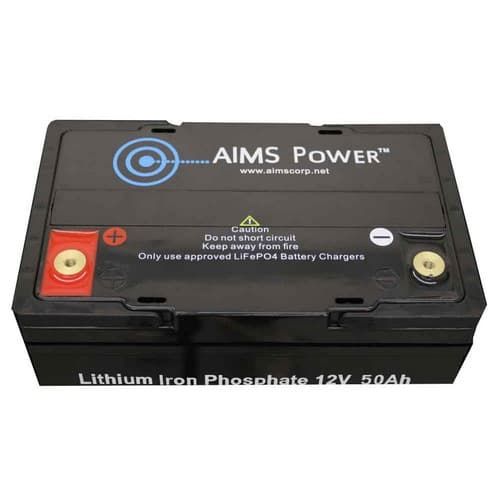

Battery post size | 7/32" |
BMS Operation |
Over Charge Protection | Over charge detection voltage: 3.8 +/- .05V |
Over charge detection delay time: .96 - 1.4s |
Over charge release voltage: 3.60 +/-.05V |
Maximum charge voltage: 3.65 +/-.05V |
Over Discharge Protection | Over discharge detection voltage: 2.0V +/- .05V |
Over discharge detection delay time: 115-173ms |
Over discharge release voltage: 2.3V +/- .10V |
Over Current Protection | Over current detection delay time: 9 +/- 2ms |
Over current release condition: Cut load |
Polarity Reverse Protection | Yes |
Short Circuit Protection | Yes |
UPC | 840271005683 |
Warranty | 10 Yr Manufacturer Defect |
