The images shown are for illustration purposes only and may not be an exact representation of the product

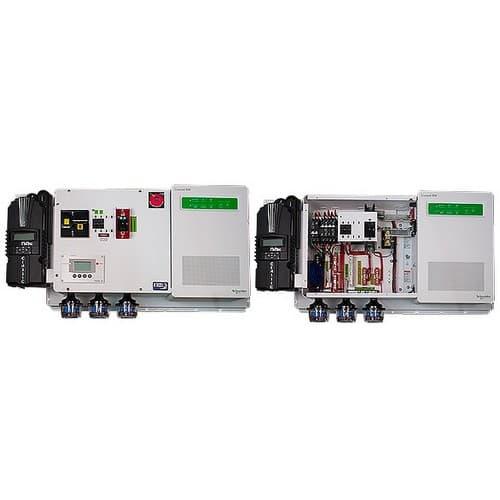

Pre Wired Schneider Electric Conext SW4048 120/240 vac Inverter for Off grid.
4,000 watt 48 volt inverter.
AC Bypass Assembly included
Classic 150 installed.
MidNite Solar pre-wired inverter systems offer a turn key solution to installing a battery based inverter system, saving you time in the field. With a pre-wired solution all of the confusion is taken out of selecting all the right parts. This system uses the Schneider Electric Conext SW inverter that is rated at 4,000 watts and uses a 48 volt battery. It produces 120/240 volts AC. Dont forget to look at our other products that compliment the pre-wired inverter system like our Battery Boxes or Disconnecting Combiners. Our pre wired systems can be configured in about any way needed with any of the common battery based inverters (except Outback). Please contact us for a quote if the System you need is not listed. Below is a simple list of the major components included in the system.
The Whizbang Jr (MNWBJR) current sense module for Classic provides battery state of charge and is included with this product.
This system is also available using the Schneider Conext SW2524 Or the Schneider Conext SW4024 Features
- Environmental Rating - Type 1 (Indoor)
- Schneider Electric Conext SW Pre-Wired 4048 120/240 vac Inverter for Off Grid
- Schneider System Control panel
- SW E-Panel
- MidNite Back Plate (MNSW-BP)
- AC Bypass Assembly
- Classic 150 charge controller with DC-GFP (Ground Fault protection) and Arc Fault protection built in.
- Three MNSPD300's (Surge Protection Devices)
- 175 amp Battery Main Breaker for the SW Inverter
- Warranty - All MidNite components have a 5 year warranty. SW Inverters are covered by Schneider's manufacturers warranty.
- MidNite E-Panel, Classic Charge Contoller and SPD's made in the USA
- Schneider SW Inverter made in India
- Listed by ETL for US & Canada.
- General labor for assembly, test and crating included
- SPD Manual | Download
- Conext SW Manual | Download
- MNSW2524_4024or4048-CL150-REVG | Download
- MNSW2524,4024or4048-CL200-RSS | Download
- MNSW2524_4024or4048-CL150-RSS-REV-I | Download
- MNSW2524_4024or4048-2CL150-REVG | Download
- MNSW2524_4024or4048-CL200-REVF | Download
- MNSW2524_4024or4048-CL250-REVF | Download
Truck Freight Only
NOTE: MidNite does not warranty Schneider components.
