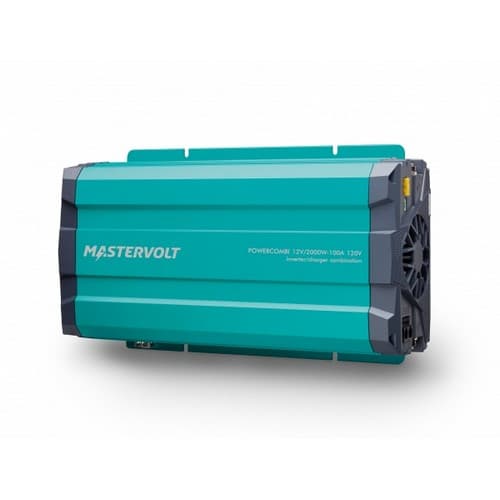

The images shown are for illustration purposes only and may not be an exact representation of the product
PowerCombi 12/2000-100 Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming - the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries - including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
| Specifications sine wave inverter |
| Efficiency | 89 % |
| Specifications battery charger |
| Input voltage range | 10 - 15.5 V |
| Nominal input voltage | 12 V |
| Max. charge current at 25 C / 77 F | 100 A DC |
| Specifications transfer system |
| Transfer speed | 30 A (10ms) |
| Communication & monitoring |
| Communication | MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900) |
| General specifications |
| Flat battery support (minimum charging) | no (6 V) |
| Continuous power at 25 C / 77 F, cos phi 1 | 2000 W |
| Continuous power at 40 C / 104 F, cos phi 1 | 2000 W |
| Surge power (3s) | 4000 W |
| AC voltage / frequency | 120 V - 50/60 Hz selectable HF - pure |
| Idle consumption | 36 W |
| Dimensions, hxwxd | 453 x 251 x 116 mm 17.8 x 9.9 x 4.6 inch |
| Weight | 6 kg 13.2 lb |
| Approvals | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending, specifications subject to change) |
| Technical specifications |
| Battery types | flooded, Gel, AGM, custom |
| Temperature range (ambient temp.) | -20 C to 60 C -4 F to 140 F |
