PV charge, diversion and load controller

The C35 and C60 are field configurable for 12 V and 24 V operation. The C40 may be configured for 12 V, 24 V, or 48 V operation. C35, C40 and C60 charge controllers can be used as a charge, diversion, or load controller and come with a standard multi-color charge status LED face plate

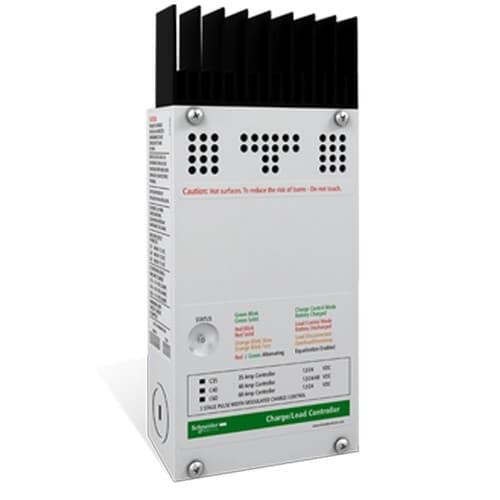

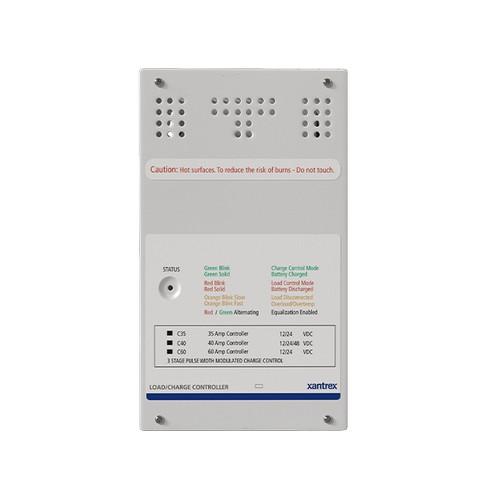

A Controller for Virtually any DC Charging Source. The C60 is a fully solid state, microprocessor-driven controller that is UL and cUL listed. C Series controllers may be configured for PV battery charging, or DC load control or DC diversion operation. Whatever the charging source, a C Series controller is sure to meet your DC controller needs.

Silent Microprocessor Control-All C Series controllers have a powerful microprocessor at their core which increases system performance and maximizes battery life. They are fully solid state and operate silently.

Higher return on investment

• Improve battery life with pulse width modulated (PWM) multi-stage temperature compensated charging
• Two-year standard warranty
• Data Sheet | Download
• Owners Guide | Download

Flexible

• PV charge, diversion, load controller
• Available remote display with cumulative AMP hours

Easy to service

• Electronic protection against short-circuit, overload, and over-temperature conditions
• Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure

Easy to Install

• Field adjustable voltage and battery set point
• Automatically disconnects from the battery at night
• Compatible with negative ground and ungrounded systems

Accessories	Part number
Meter, digital volt, C Series remote w/ 50 ft cable	CM/R-50
Battery temp sensor w/ 35ft cable	130-0004-03-01
