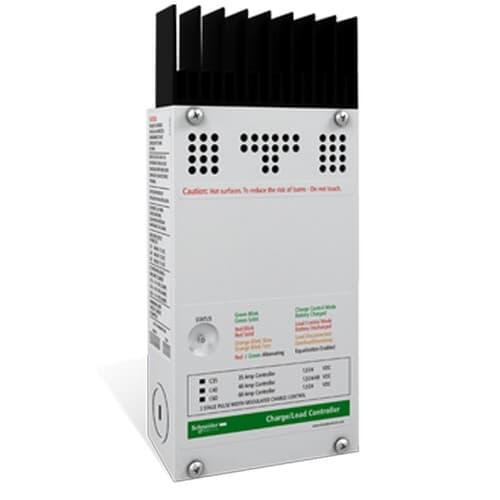

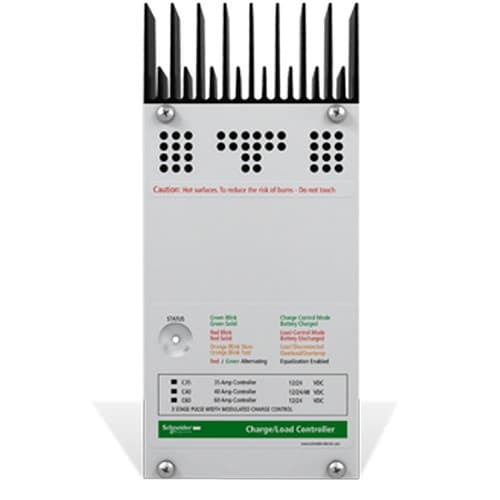

Solar C Series PWM Charge ControllerPV charge, diversion and load controllerThe C35 and C60 are field configurable for 12 V and 24 V operation. The C40 may be configured for 12 V, 24 V, or 48 V operation. C35, C40 and C60 charge controllers can be used as a charge, diversion, or load controller and come with a standard multi-color charge status LED face plate.
PV charge, diversion and load controllerA Controller for Virtually any DC Charging Source. The C60 is a fully solid state, microprocessor-driven controller that is UL and cUL listed. C Series controllers may be configured for PV battery charging, or DC load control or DC diversion operation. Whatever the charging source, a C Series controller is sure to meet your DC controller needs.
Silent Microprocessor Control-All C Series controllers have a powerful microprocessor at their core which increases system performance and maximizes battery life. They are fully solid state and operate silently.
Certifications- UL listed to UL1741* and CSA 107.1-01; CE Marked for the Low Voltage Directive
- FCC and Industry Canada Class B, CE Marked for the EMC Directive
Applications- Recreational Vehicles
- Heavy Duty Trucks
- Coaches/Buses
- Marine
- Work Trucks
- Specialty Vehicles
Available in- C35 PWM Solar Charge Controller - 35A, 12/24V - PN: C35

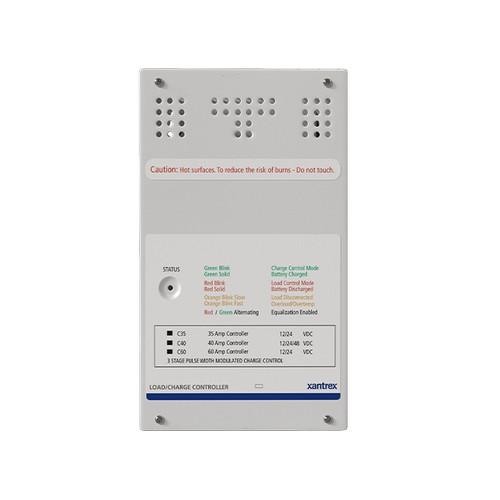

- C40 PWM Solar Charge Controller - 40A, 12/24/48V - PN: C40
- C60 PWM Solar Charge Controller - 60A, 12/24V - PN: C60
Features- Three-stage regulation, solid state, and pulse width modulation
- Field adjustable control setpoints
- Automatic equalization
- Multi colour LED indicates operating and battery voltage status
