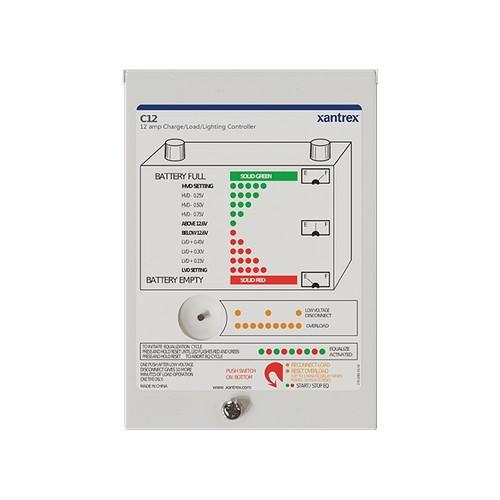

C12 PWM Charge ControllerPV charge, lighting and load controllerThe C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization.
PV charge, diversion and load controllerThe C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization. Standard in the C12’s load control circuitry are field adjustable low voltage disconnect and reconnect points, along with a five-minute low battery disconnect signal. The C12 also functions as a lighting controller. Lighting run time is adjustable from two to eight hours or can be set from dusk to dawn operation. It is used worldwide in a variety of applications, including remote village lighting systems and automatic outdoor lighting. An optional battery temperature sensor manages battery charging based on battery temperature.
Certifications- CE marked for the Low Voltage Directive and EMC Directive
Applications- Recreational Vehicles
- Heavy Duty Trucks
- Coaches/Buses
- Marine
- Work Trucks
- Specialty Vehicles
Available in- C12 PWM CHARGE CONTROLLER - 1000A OR 2000A - C12
Features- Three-stage regulation, solid state, and pulse width modulation
- Field adjustable control setpoints
- Automatic equalization
- Multi colour LED indicates operating and battery voltage status
