AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline
AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline
Model:
PV130SLIM
Manufactured by:
AIMS Power
Condition:
New
Estimated Delivery:
May 29th - Jun 4th
In Stock
Out of Stock
Price:
$271.70
$209.00
Specifications
High performance: light transmittance up to 93%
Cell Efficiency: 22.3% (one of the highest)
Module Efficiency: 19.2% (one of the highest)
Maximum Power: 130W
Tolerance Wattage (e.g. +/- 5%): +/- 5%
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 22 V
Optimum Operating Current (Imp): 5.5 A
Open-Circuit Voltage (Voc): 26.4 V
Short-Circuit Current (Isc): 6.35 A
Power Tolerance: 0=+3W
Maximum Fuse Rating: 10 A
Fire Safety Class: Class A
Junction Box: IP 67 rated
Temperature Range: -40?F to 185?F
Bendable degree 3? to 90?
Number of cells: 4 x 10

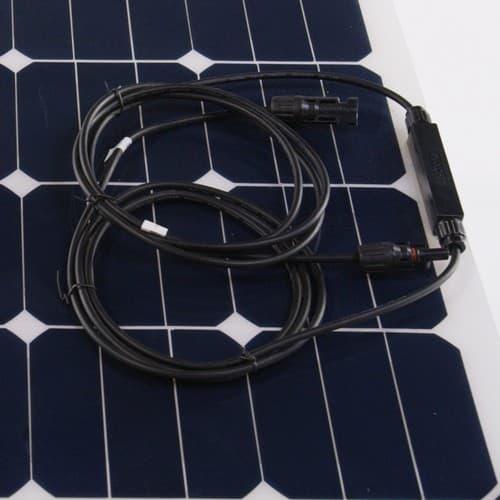

PV Wire: 10 AWG with MC 4 male and female connectors 76" length
Temperature Coefficients C
ISC(%): +2.6
Voc(%): -50.6
Prm(%): -.38
Im(%): +2.2
Vm(%): -60.8
Dimensions: 53.1 X 21.25 X 0.12 inches
Weight: 3.96 lbs
Certifications: CE, ETL, TUV and RoHS
