Outback Power, GSLC-PV-300VDC, Prewired 300 VDC GSLC for FM100 charge controllers with two 175 Amp inverter disconnects, 120/240 VAC inverter bypass, dual AC inputs, FLEXnet DC, two PV disconnects and three 500 Amp DC shunts (GFDI integrated in FLEXmax 100)

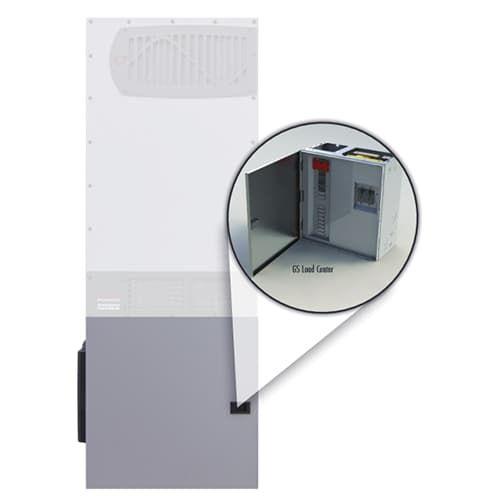

The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, GSLC-PV-300VDC, Prewired 300 VDC GSLC for FM100 charge controllers with two 175 Amp inverter disconnects, 120/240 VAC inverter bypass, dual AC inputs, FLEXnet DC, two PV disconnects and three 500 Amp DC shunts (GFDI integrated in FLEXmax 100)

  • Model: GSLC-PV-300VDC
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 2nd - Jul 8th
  • In Stock
Price:

$2,235.87 $1,719.90

Would you like to add these items to your order?
Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Manufacturer Info

(image for) Outback Power
OutBack Power's Radian GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications.

The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

NOTICE: The new 300V GS load centers accommodate FLEXmax 100 charge controllers. Due to the different voltage ratings, OutBack Power does not recommend mixing the FM100-300VDC with the FM60 or FM80-150VDC controllers on the same battery bank. Be sure to review installation instructions when installing OutBack Power equipment.

Product Highlights
  • Pre-wired or customized options for quick and easy installation
  • Dual AC inputs and DC connections
  • 120/240VAC and 230VAC designs
  • UL 1741 end-to-end
  • Greater dynamic stability
  • Dual AC inputs
  • Fully integrated from industry leading brand
  • GS Load Center Datasheet | Download
  • GS Load Center Datasheet, Chinese | Download
  • Warranty Information - English / Spanish | Download
  • Warranty Information - French / German | Download
  • Radian Series GS Load Centers STEP File | Download
