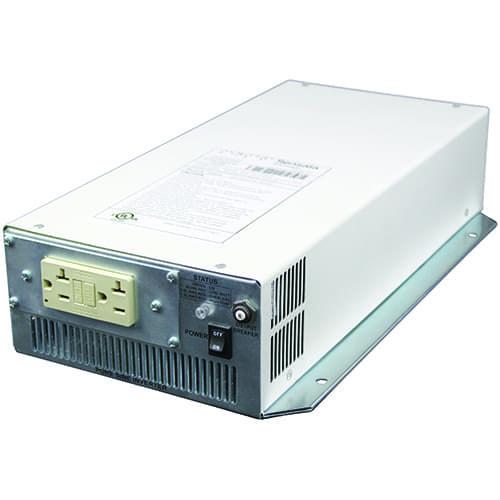

The Magnum-Dimensions LP Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate. The CSW will provide you with reliable AC power for troublefree use.
Features - GFCI Outlet
- Unit Protection
- Status LED
- Low Battery Protection
- Battery Surge Protection
- Auto Sleep Mode
- Product Manual | Download
- Product Specifications | Download
| Output Power | 1,000W |
|---|
| Peak Watts | 2,000W |
|---|
| Warranty | 5 Years |
|---|
| Output Voltage | 120 VAC |
|---|
| Output Peak | 23amps |
|---|
| Output Current | 8amps |
|---|
| Output Waveform | Pure Sine |
|---|
| Output Frequency | 60 Hz |
|---|
| Motor Starting Capacity | 1/3 hp |
|---|
| Input Voltage | 12 |
|---|
| Continuous Output Amps | 8amps |
|---|
| Operating Temp | -20 C to +60 C (-4 F to 140 F) |
|---|
| Efficiency | 82% |
|---|
| Weight | 20 lb (9.1 kg) |
|---|
| Dimensions | 17.3” x 9.0” x 3.6” (43.9 cm x 22.9 cm x 9.1 cm) |
|---|
| UL Certified | Yes |
|---|
| Phase | Single |
|---|
| Topology | Low Frequency |
|---|
| Input Battery Voltage Range | 10-16 |
|---|
