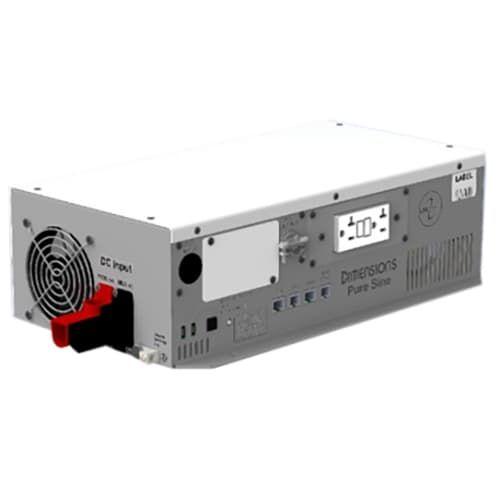

The Magnum-Dimensions LP Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate.
Features - GFCI Outlet
- Unit Protection
- Status LED
- Low Battery Protection
- Battery Surge Protection
- Auto Sleep Mode
- Spec Sheet | Download
| Output Power | 1,500W |
| Peak Watts | 3,000W |
| Output Voltage | 120 VAC |
| Output Peak | 25amps |
| Output Current | 12amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Motor Starting Capacity | 1/2 hp |
| Input Voltage | 12 |
| Continuous Output Amps | 12amps |
| Operating Temp | -40C to 50C [-40F to 122F] |
| Efficiency | Up to 80% |
| Weight | 28 lb |
| Dimensions | 19.0” x 9.75” x 4.8” [48.3cm x 24.8cm x 12.2cm |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 10.5-15.0 |
