Fronius, 4,210,095,801, Symo Advanced 24.0-3 480, Sunspec, 24.0 KW, 480 Vac, Lite - No Datamanager 2.0 Card

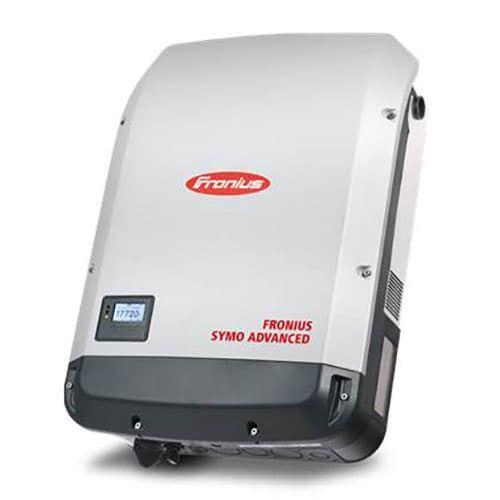

The images shown are for illustration purposes only and may not be an exact representation of the product

Fronius, 4,210,095,801, Symo Advanced 24.0-3 480, Sunspec, 24.0 KW, 480 Vac, Lite - No Datamanager 2.0 Card

  • Model: 4,210,095,801
  • Manufactured by: Fronius
  • Condition: New
  • This product is currently on Backorder.
    Expected Ship Date: December 20, 2023

    Price: $4,735.55  $3,642.73
    Specially Developed For The Requirements of Tomorrow

    Featuring models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.
    Width511 mm
    Height724 mm
    Depth228 mm
    Weight43,4 kg
    InstallationIndoor and outdoor installation, tilt from 0 - 90 degree (Fronius Shade Cover required for installation angles less than 15 degrees)
    Permitted humidity 2)0 - 100 % (non-condensing)
    Dimension (width)511 mm
    Dimension (height)724 mm
    Dimension (depth)228 mm
    Weight43,4 kg
    Protection classNEMA 4X
    Night time consumption<1 W
    Inverter topologyTransformerless
    CoolingVariable speed fan
    Elevation2000 m (6562 ft) with a max. input voltage of 1000 V / 3400 m (11155 ft) with a max. input voltage of 850 V
    Certificates and compliance with standardsUL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
    DC connection terminals6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)
    AC connection terminalsScrew terminals 14-6 AWG
    Number of MPPT2
    Max. usable input currentNA
    Max. usable input current total (MPPT1 + MPPT2)51 A
    Max. array short circuit current (1.5 * Imax)76,5 A
    Operating voltage range200-1000 V
    MPP Voltage Range500 - 800 V
    Max. input voltage (Udc max)1000 V
    Max. output power 480 V23995 W
    Max. output power 277 V23995 W
    Max. output power 240 VNA
    Max. output power 208 VNA
    Output configuration3~ NPE 480 V
    Frequency range50-66 Hz
    Nominal operating frequency60 Hz
    Power factor range0-1 ind,/cap,
    Max continuous output current 480 V28,9 A
    Max. continuous output current 277 V28,9 A
    Max. continuous output current 240 VNA
    Max. continuous output current 208 VNA
    DC reverse polarity protectionYes
    Anti islandinginternal; in accordance with UL 1741-2010, IEEE 1547-2003 and NEC
    Over temperature protectionOutput power derating/Active cooling
    Rapid shutdown compliantYes
    Ground fault protection with isolation monitor interrupterYes
    DC disconnectYes
    USB (type A socket)Datalogging and inverter update possible via USB
    2x RS422 (RJ45 socket)Fronius Solar Net, interface protocol
    Wi-Fi / Ethernet / Serial / Datalogger and webserverWireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU
    6 inputs and 4 digital I/OsLoad management; signaling, multipurpose I/O
    Power Line Communication (PLC)Yes – SunSpec Rapid Shutdown communication standard
    Compatible Module Level ElectronicTigo TS4-F based on SunSpec PLC (pending testing)
