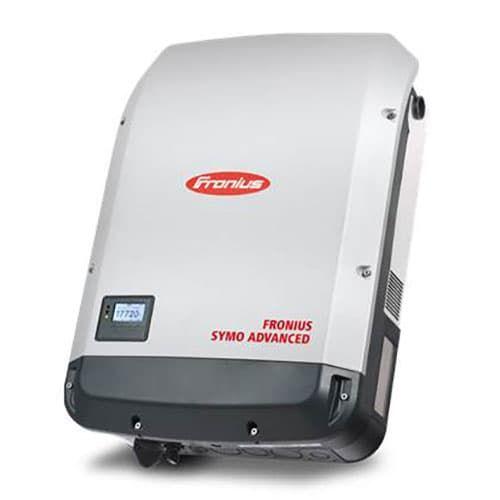

The images shown are for illustration purposes only and may not be an exact representation of the product

Fronius, 4,210,091,801, Symo Advanced 12.0-3 208/240, Sunspec, 12.0 KW, 208/240 Vac, Lite - No Datamanager 2.0 Card

  • Model: 4,210,091,801
  • Manufactured by: Fronius
  • Condition: New
  • Estimated Delivery: May 29th - Jun 4th
  • In Stock
Price:

$4,828.71 $3,714.39

Manufacturer Info

Specially Developed For The Requirements of Tomorrow

Featuring models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.
Width511 mm
Height724 mm
Depth228 mm
Weight43,4 kg
InstallationIndoor and outdoor installation, tilt from 0-90 degrees (Fronius Shade Cover required for installation angles less than 15 degrees)
Permitted humidity 2)0-100 % (non-condensing)
Dimension (width)511 mm
Dimension (height)724 mm
Dimension (depth)228 mm
Weight43,4 kg
Protection classNEMA 4X
Night time consumption<1 W
Inverter topologyTransformerless
CoolingVariable speed fan
Elevation2000 m (6562 ft) with a max. input voltage of 1000 V / 3400 m (11155 ft) with a max. input voltage of 850 V
Certificates and compliance with standardsUL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
DC connection terminals6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)
AC connection terminalsScrew terminals 14-6 AWG
Number of MPPT2
Max. usable input current41,5 A
Max. array short circuit current (1.5 * Imax)62,2 A
Nominal input voltage350 V
Operating voltage range200-600 V
MPP Voltage Range300-500 V
Max. input voltage (Udc max)600 V
Max. output power 480 VNA
Max. output power 277 VNA
Max. output power 240 V11995 W
Max. output power 208 V11995 W
Output configuration3~ NPE 208-240 V
Frequency range50-66 Hz
Nominal operating frequency60 Hz
Power factor range0-1 ind,/cap,
Max continuous output current 480 VNA
Max. continuous output current 277 VNA
Max. continuous output current 240 V28,9 A
Max. continuous output current 208 V33,3 A
DC reverse polarity protectionYes
Anti islandingInternal; in accordance with UL 1741-2010, IEEE 1547-2003 and NEC
Over temperature protectionOutput power derating /Active cooling
AFCIYes
Rapid shutdown compliantYes
Ground fault protection with isolation monitor interrupterYes
DC disconnectYes
USB (type A socket)Datalogging and inverter update possible via USB
2x RS422 (RJ45 socket)Fronius Solar Net, interface protocol
Wi-Fi / Ethernet / Serial / Datalogger and webserverWireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU
6 inputs and 4 digital I/OsLoad management; signaling, multipurpose I/O
Power Line Communication (PLC)Yes – SunSpec Rapid Shutdown communication standard
Compatible Module Level ElectronicTigo TS4-F based on SunSpec PLC (pending testing)
