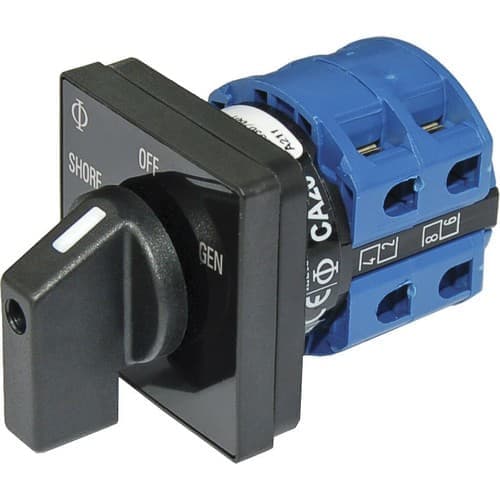

Blue Sea Systems, 9009, AC Rotary Switch - OFF + 2 Positions 120V AC 30A

Name: Blue Sea Systems, 9009, AC Rotary Switch - OFF + 2 Positions 120V AC 30A
Brand: Blue Sea Systems
SKU: 185392
Price: 164.65 USD
Availability: InStock

Model: 9009

GTIN: 00632085090098

Manufactured by: Blue Sea Systems

Condition: New

Estimated Delivery:

Lead Time To Ship May Vary

Price: $214.04 $164.65

Features

Switches 2 - 120 or 230 Volt AC sources
Compact solution when circuit protection is provided elsewhere
Allows connecting one of two different AC sources to one circuit
Mounts in panels up to 0.16" (4.00mm) thick
Heavy duty industrial rated switch
Intuitive function - One hand operation
UL listed
Mounting Diagram
Instructions

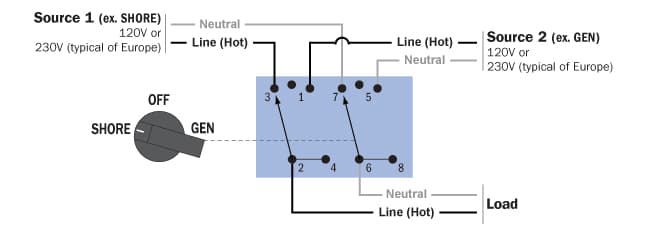

Schematic

Specifications
Positions	2 + OFF
Source Selection	2
Nominal Voltage	120V
Poles	2
Load Circuits Out	1
Maximum Amperage	30A
Maximum Voltage	600V AC
Source In	2
Height	1.89in (48.01 mm)
Width	1.89in (48.01 mm)
Depth	1.91in (48.51 mm)
Weight	0.70lb (0.32 kg)
