Blue Sea Systems, 7725, SafetyHub 100 Fuse Block
Blue Sea Systems, 7725, SafetyHub 100 Fuse Block
Model:
7725
GTIN:
00632085077259
Manufactured by:
Blue Sea Systems
Condition:
New
Estimated Delivery:
1 to 2 Weeks
Estimated Delivery:
May 17th - May 23rd
In Stock
Out of Stock
Lead Time To Ship May Vary
Price:
$116.46
$89.58

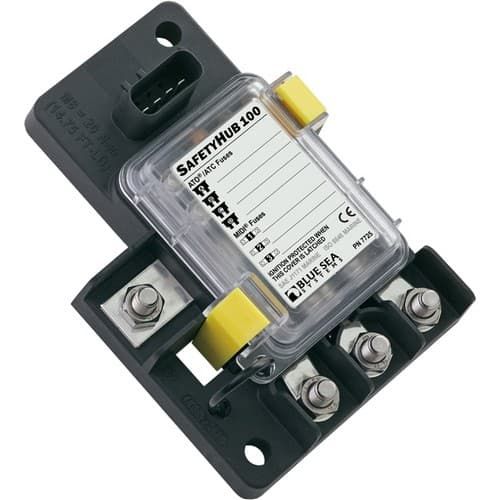

The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
Three 30A - 200A MIDI/AMI fuses sold separately ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
Four 1A - 20A ATO/ATC fuses sold separately ideal for circuits including bilge pumps, alarms, and clock memory
Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets
Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
Instructions

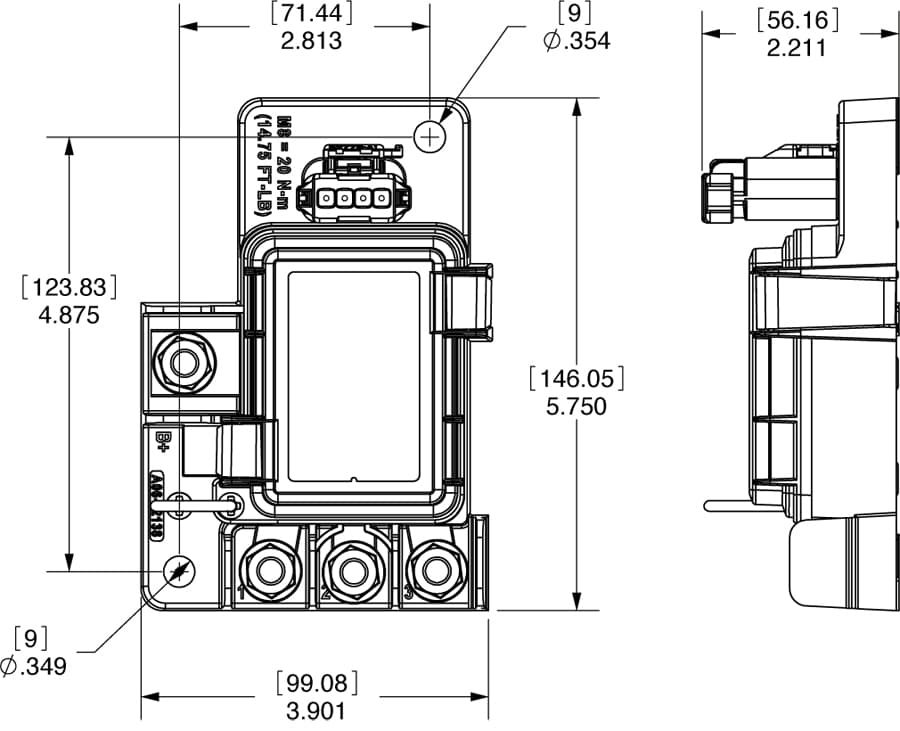

Dimensioned Drawing
Specifications
Circuits
7
Stud Size
M8 x 1.25
Operating Voltage
12V24V32V
Amperage Maximum Operating - combined
280A
Recommended Ring Terminal
M8 (5/16")
Screw Torque, 8-32
18in-lb (2.03 Nm)
Screw Torque, M5
27in-lb (3.05 Nm)
Stud Torque
180 in-lb (20.34 Nm)
Weight
3.20lb (1.45 kg)
Product Reviews
Other Products in This Category
Blue Sea Systems, 7748, SafetyHub 150 Fuse Block
$181.27
$139.44
Blue Sea Systems, 5032, ST Blade Split Bus Fuse Block
$112.63
$86.64

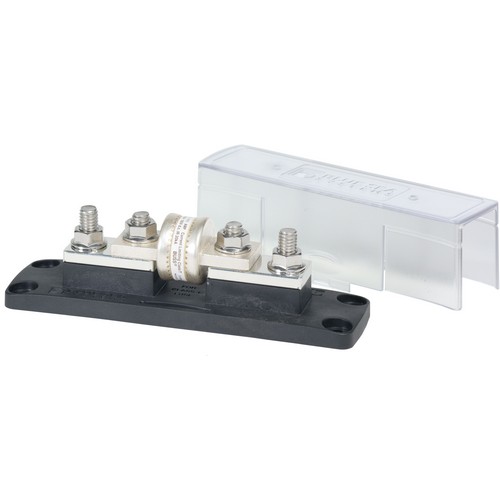

Blue Sea Systems, 5502100, Class T Fuse Block with Insulating Cover - 225 to 400A
