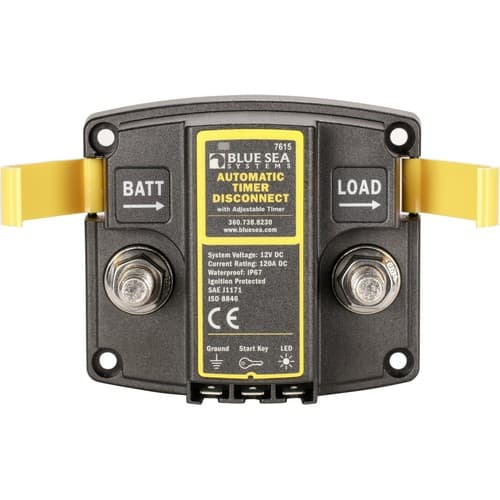

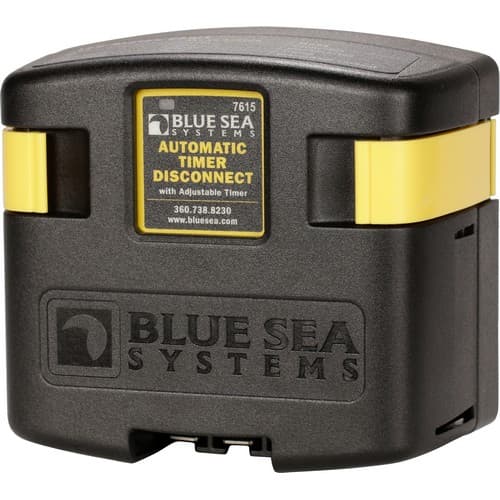

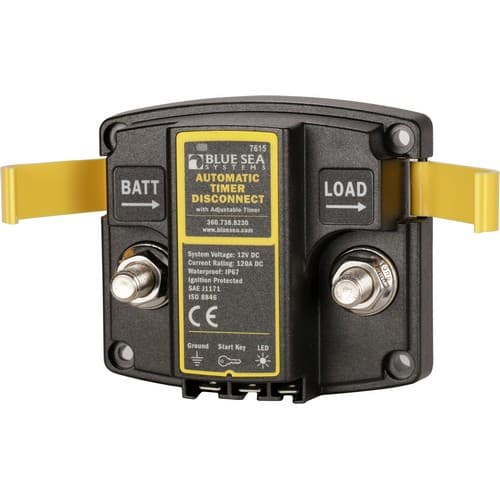

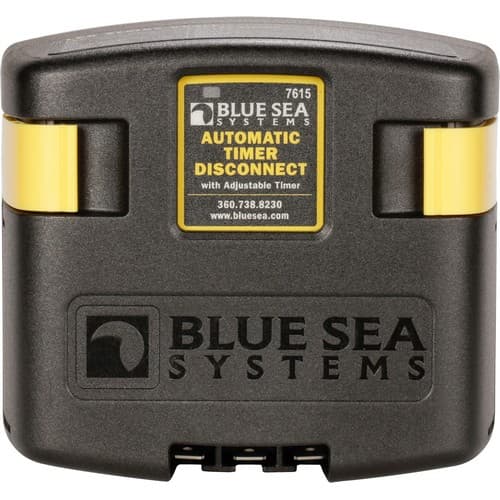

The images shown are for illustration purposes only and may not be an exact representation of the product
Can be configured to be used as one of the following battery saving products
Timer Disconnect - 12V signal triggers relay to connect battery power to devices
- When signal is removed the timer is activated and will disconnect devices after a preset time
- Timer ranges from 15 minutes to 4 hours
- Instructions
- Dimensioned Drawing
Low Voltage Disconnect - 12V signal triggers relay to connect battery power to devices.
- After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
- Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
Automatic Charging Relay - Automatically combines two batteries when charging, and isolates them when discharging
- Single side sensing design only monitors the voltage of the start battery
- Ideal for auxiliary batteries that are AGM or significantly larger than the start battery
Solenoid - 12V signal will connect or disconnect relay without any time delay
| Specifications |
|---|
| Nominal Voltage | 12V DC |
| Amperage Operating Current | 175mA (closed)4mA (open) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 Min) |
| Cable Size to Meet Ratings | 1 AWG (50mm2) |
| Charge Sense Connect | 13.0V (3 sec) |
| Charge Sense Disconnect | 12.75V (10 sec) |
| Disconnect Time | 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr |
| Input Voltage Range | 9.5-16V |
| Low Voltage Disconnect | 11.0V (10 sec)11.5V (10 sec)12.0V (10 sec) |
| Maximum Cable Size | 1/0 AWG (50mm2) |
| Terminal Ring Diameter Clearance | 1.12in (28.45 mm) |
| Terminal Stud Size | 3/8"-16 (M10) |
| Over Voltage Lockout | 16.0V (5 sec) |
| Weight | 1.25lb (0.57 kg) |
