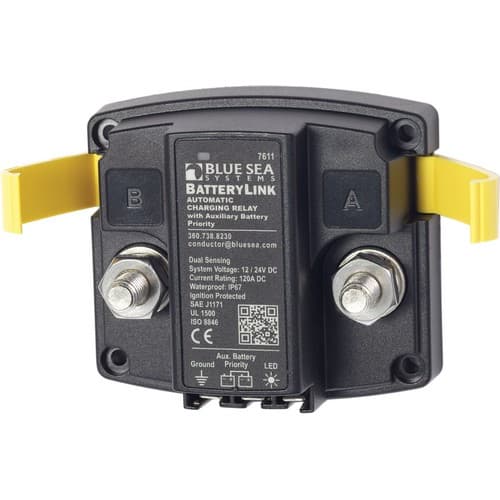

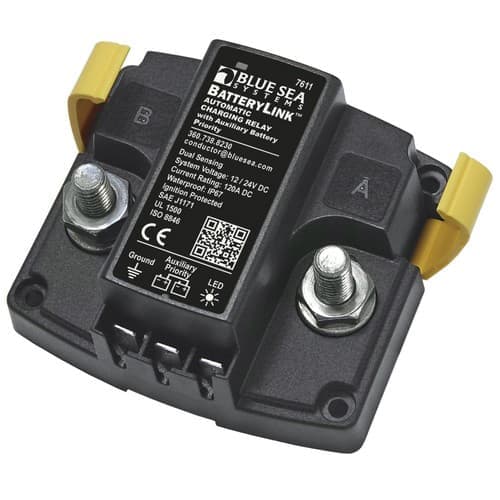

Home Blue Sea Systems Blue Sea Automatic Charging Relays Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A
Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A
Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A

Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A

  • Model: 7611
  • GTIN: 00632085076115
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Estimated Delivery: May 17th - May 23rd
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $140.34  $107.95
    Automatically shares single source of charge with Auxiliary Battery

    Features
    • 120 Amp continuous rating
    • 12/24V DC auto ranging voltage input
    • Senses charging on two battery banks
    • Side and bottom knockouts for cable connections
    • Clip-on cover insulates terminal connections
    • 7/8" (22 mm) stud length to accept multiple cable terminals
    • Integrated LED indicates ACR status
    • 1/4" x .032" male quick connect terminals for ground and optional features
    • Largest battery bank cannot exceed Group 27
    • Dimensioned Drawing
    • Instructions
    Optional Features
    • Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
    • Remote LED remotely indicates ACR states - requires optional LED
    Specifications
    Nominal Voltage12V DC24V DC
    Auxiliary Battery PriorityYes
    Amperage Operating Current175mA @ 12V (Combine)115mA @ 24V (Combine)15mA (Open)
    Continuous Rating120A
    Intermittent Rating210A (5 min)
    Maximum Cable Size1/0 AWG
    Maximum Torque140 in-lb (15.82 Nm)
    Terminal Stud Size3/8" - 16 (M10)
    Relay Contact Position
    Combine 30 sec13.6V @ 12V27.2V @ 24V
    Combine 2 Min13.0V @ 12V DC26.0V @ 24V DC
    Over Voltage Lockout16.0V @ 12 V32.0V @ 24 V
    Open Low12.75V @ 12 V25.5V @ 24 V
    Auxiliary Priority
    Open Low12.25V @ 12V24.5V @ 24V
    Weight1.25lb (0.57 kg)
