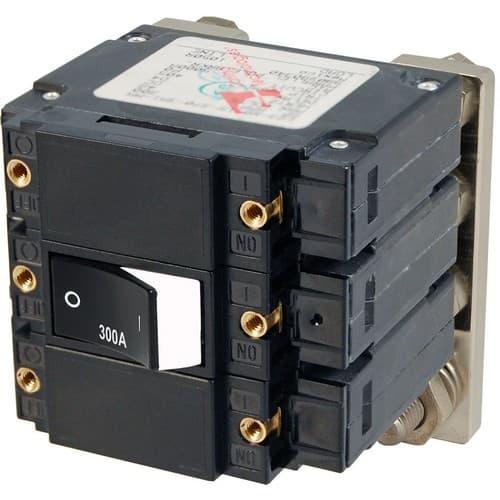

Blue Sea Systems, 7554, C-Series Flat Rocker Circuit Breaker - Triple Pole 300A Blue Sea Systems, 7554, C-Series Flat Rocker Circuit Breaker - Triple Pole 300A
Blue Sea Systems, 7554, C-Series Flat Rocker Circuit Breaker - Triple Pole 300A
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7554, C-Series Flat Rocker Circuit Breaker - Triple Pole 300A

  • Model: 7554
  • GTIN: 00632085075545
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
  • Price: $201.13  $154.72
    Features

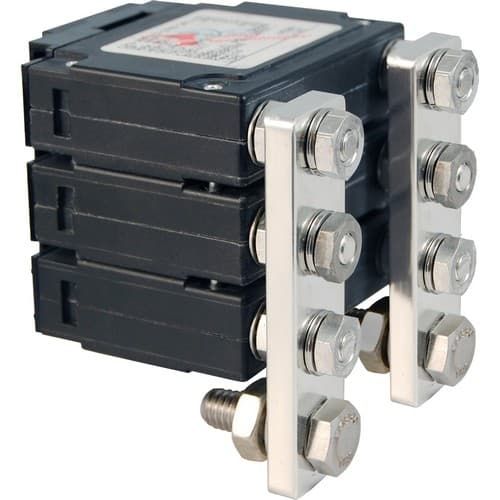

    • Paralleled poles have 5/16" stud on bus
    • Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
    • Color actuator indicates “OFF” position
    • Provides overcurrent protection for inverters, bow thrusters, and windlasses
    • Combines switching and circuit protection into a single device
    • “Trip Free” - cannot be held closed after trip
    • Dimensioned Drawing
    • Cutout Template
    Specifications
    Amperage300A DC
    Actuator StyleFlat Rocker
    Poles3
    Maximum Voltage120V AC240V AC48V DC
    Circuit Breaker TypeMagnetic Hydraulic - trip free
    Terminal Stud Torque35 in-lb (3.95 Nm)
    Interrupt Capacity 5000A @ 48V DC
    Minimum Operating Temperature-40 C
    Maximum Operating Temperature85 C
    Mounting Screw6-32 Stainless Steel
    Mounting Screw Torque6 in-lb (0.68 Nm)
    Switching Cycles10000
    Terminal Stud1/4-20 Tin-Plated Brass
    Weight0.93lb (0.42 kg)
