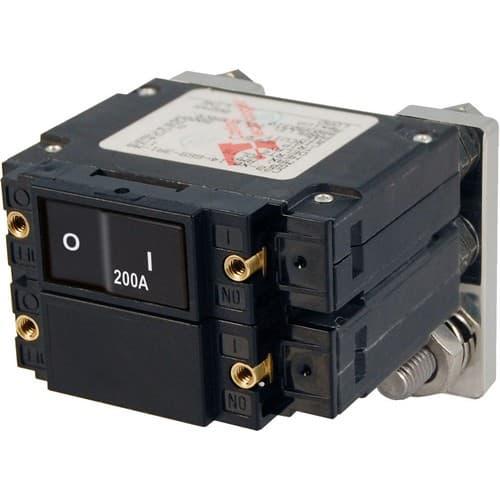

Blue Sea Systems, 7476, C-Series Flat Rocker Circuit Breaker - Double Pole 200A

  • Model: 7476
  • GTIN: 00632085074760
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary

$201.31 $154.85

Manufacturer Info

  • Paralleled poles have 5/16" stud on bus
  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
  • Color actuator indicates “OFF” position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • “Trip Free” - cannot be held closed after trip
  • Instructions
  • Dimensioned Drawing
  • Cutout Template
Amperage200A DC
Actuator StyleFlat Rocker
Maximum Voltage120V AC240V AC48V DC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Terminal Stud Torque35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 48V DC
Minimum Operating Temperature-40 C
Maximum Operating Temperature85 C
Mounting Screw6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Switching Cycles10000
Terminal Stud1/4-20 Tin-Plated Brass
Weight0.64lb (0.29 kg)
