The images shown are for illustration purposes only and may not be an exact representation of the product

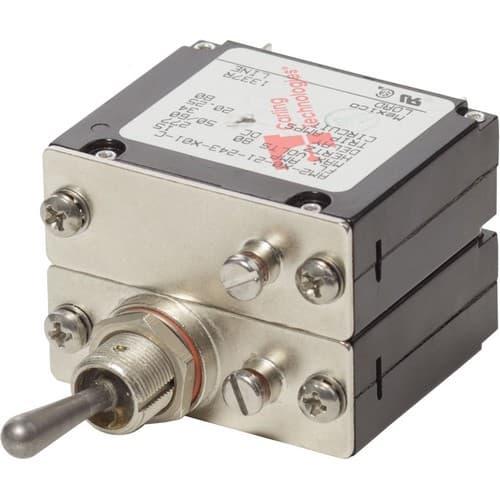

Blue Sea Systems, 7312, COTS Military Grade A-Series 15 Amp
- Model: 7312
- GTIN: 00632085073121
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Dec 8th - Dec 14th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
May be suitable for use when military specifications are required under CFR 46.
Specifications |
---|
Amperage | 15A |
Actuator Style | Metal Toggle |
Poles | 2 |
Maximum Voltage | 277V AC65V DC |
Circuit Breaker Type | Magnetic Hydraulic - Trip free |
Interrupt Capacity | 1500A AC7500A DC |
Minimum Operating Temperature | -40 C |
Maximum Operating Temperature | 85 C |
Mounting Boss | 1/2-32 Hex Nut SS |
Mounting Nut Torque | 30in-lb (3.39 Nm) |
Mounting Screw | #6-32 SS |
Mounting Screw Torque | 7 in-lb (0.79 Nm) |
Screw Terminal Torque | 14 in-lb (1.58 Nm) |
Switching Cycles | 6000 Electrical4000 Mechanical |
Terminal Screw | #10-32 SS |
Weight | 0.13lb (0.06 kg) |
