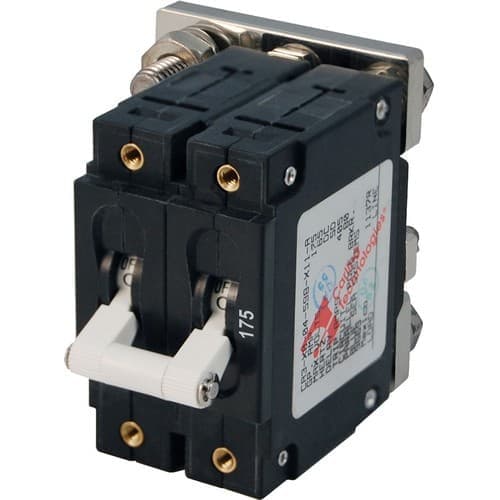

Blue Sea Systems, 7268, C-Series White Toggle Circuit Breaker - Double Pole 175 Amp
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7268, C-Series White Toggle Circuit Breaker - Double Pole 175 Amp

  • Model: 7268
  • GTIN: 00632085072681
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$185.07 $142.36

Manufacturer Info

(image for) Blue Sea Systems
Features
  • Paralleled poles have 5/16" stud on bus
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip

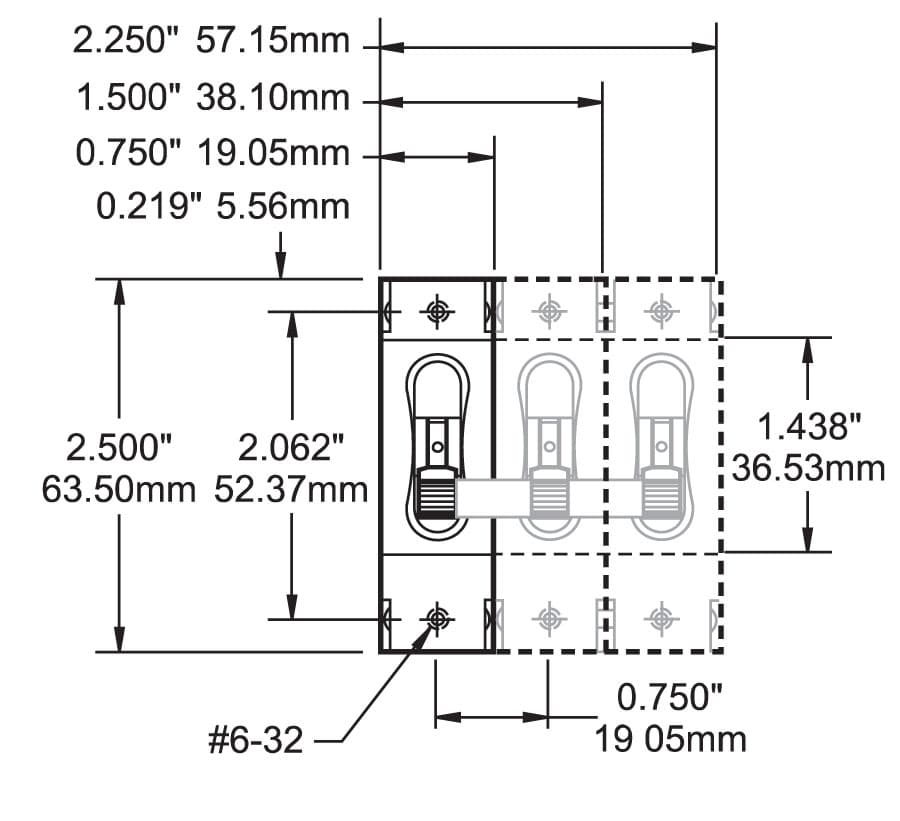

  • Dimensioned Drawing
Specifications
Amperage175A DC
ColorWhite
Actuator StyleToggle
Poles2
Maximum Voltage120V AC240V AC65V DC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Terminal Stud Torque35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 65V DC
Minimum Operating Temperature-40 C
Maximum Operating Temperature85 C
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Switching Cycles10000
Terminal Stud1/4-20 Tin-Plated Brass
Weight0.64lb (0.29 kg)
