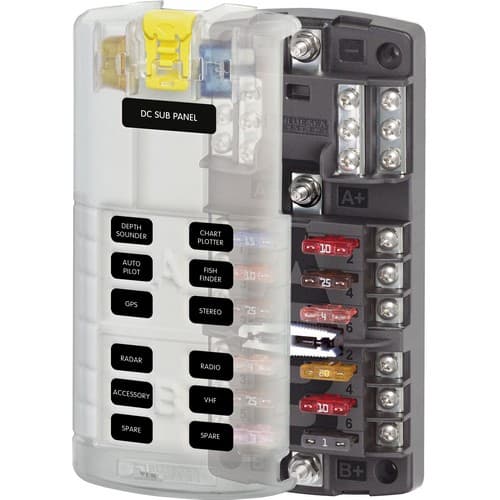

Blue Sea Systems, 5032, ST Blade Split Bus Fuse Block

  • Model: 5032
  • GTIN: 00632085050320
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary

$124.01 $95.40

Manufacturer Info

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
  • Provides two isolated groups of six ATO/ATC circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
  • Screw terminals for securing wires accept ring terminals
  • One-piece stainless flange nuts ensure safe and secure connections
  • Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
  • Easy to open, push button latch for easy access to fuses
  • Tin-plated copper buses and fuse clips
  • Fuses sold separately

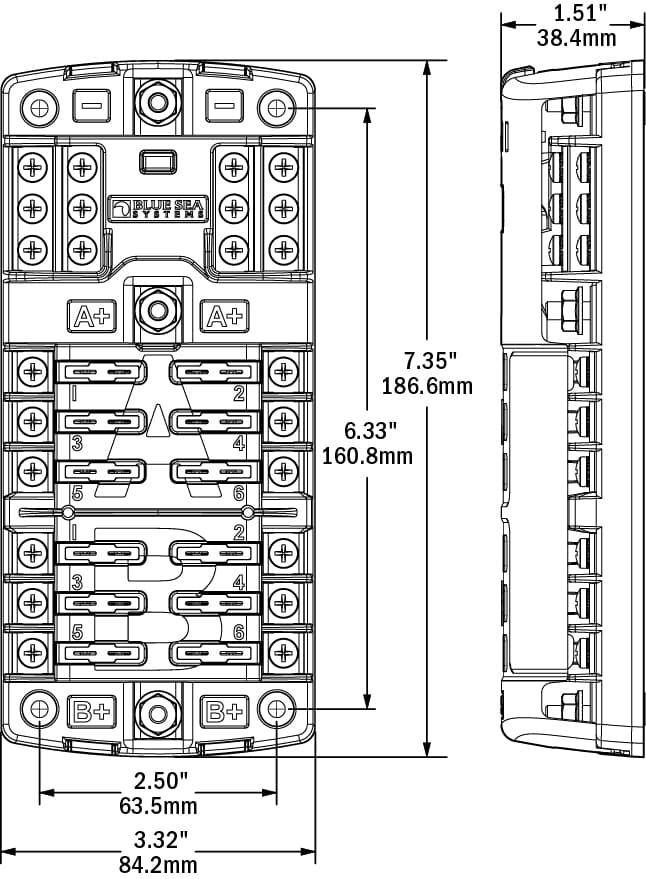

  • Dimensioned Drawing
Maximum Amperage30A per circuit100A total
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Negative Bus#10-32 Stud
Positive Bus#10-32 Stud
Recommended Torque24 in-lb (2.71 N - m)
Screw Terminal Torque15 in-lb (1.69 Nm)
Screw Terminal Type#8-32 Screws with captive star lock washer
Weight0.75lb (0.34 kg)
