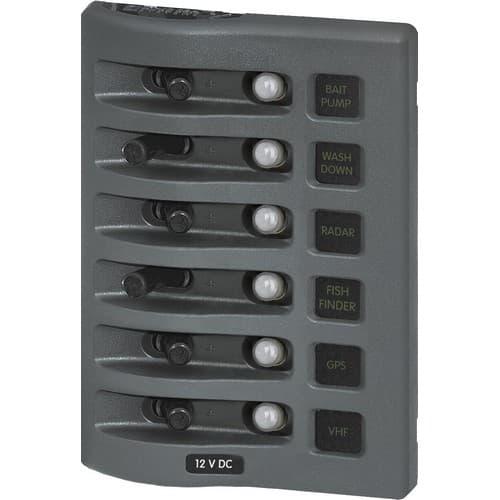

Blue Sea Systems, 4376, WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 6 Positions
Manufacturer Info
Features

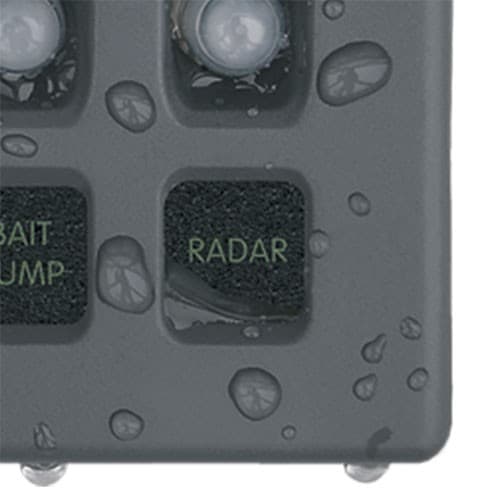

- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Instructions
- Cutout Templates
| Specifications | |
|---|---|
| Weatherproof | Waterproof |
| Positions | 6 |
| Nominal Voltage | 12V DC24V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12 or 24V DC |
| Material | Reinforced Polycarbonate |
| Height | 6.00in (152.4 mm) |
| Width | 4.25in (107.95 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 1.35lb (0.61 kg) |
