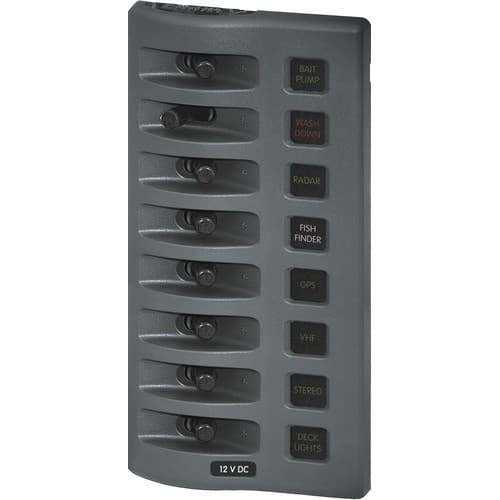

Blue Sea Systems, 4308, WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 4308, WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

Model: 4308
GTIN: 00632085043087
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 25th - May 31st
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$248.45 $191.11

Manufacturer Info

Other products

Features

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 - protected against immersion up to 1 meter for 30 minutes

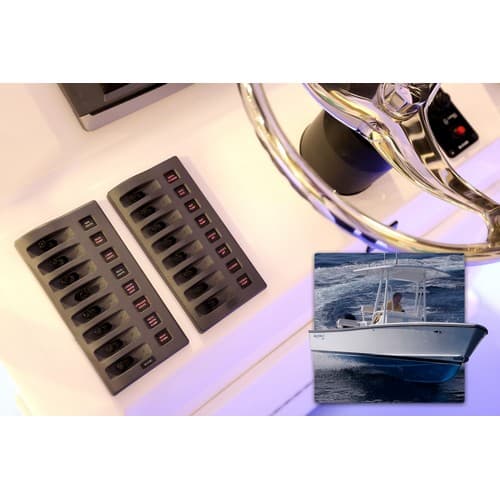

Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Available in 2, 4, 6, and 8 circuit models
Each panel can be mounted in four different orientations

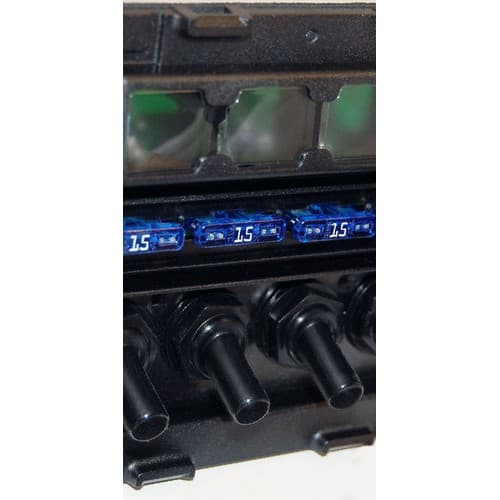

Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
Cutout Templates
Navigation Light Diode Application (4,6 & 8 position)
Instructions

Specifications
Weatherproof	Waterproof
Positions	8
Nominal Voltage	12V DC
Circuit Protection	Fuse
Maximum Amperage	15A @ 12V DC (per circuit)
Panel Cumulative Rating	100A
Backlit Label	Bicolored LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12V DC
Material	Reinforced Polycarbonate
Height	7.70in (195.58 mm)
Width	3.88in (98.55 mm)
Depth	2.50in (63.5 mm)
Weight	1.55lb (0.7 kg)
