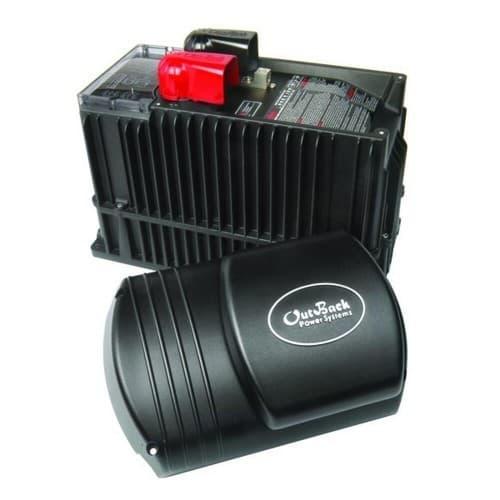

OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.
Product Highlights- True sine wave output
- Intelligent battery charging
- High operating efficiency
- Corrosion-resistant internal components
- Integrated network communications
- Standard 5-year warranty
- Product Specifications | Download
- Product Manual | Download
| Vented Models | Vented Models | Vented Models | Vented Models | Vented Models |
---|
| VFX2812M | VFX3524M | VFX3232M | VFX3236M | VFX3648M |
Nominal DC Input Voltage | 12 VDC | 24 VDC | 32 VDC | 36 VDC | 48 VDC |
Continuous Power Rating at 25 C | 2800 VA | 3500 VA | 3200 VA | 3200 VA | 3600 VA |
AC Voltage/Frequency | 120 VAC 60 Hz | 120 VAC 60 Hz | 120 VAC 60 Hz | 120 VAC 60Hz | 120 VAC 60Hz |
Continuous AC RMS Output at 25 C | 23.3 amps AC | 29.2 amps AC | 26.6 amps AC | 26.6 amps AC | 30.0 amps AC |
Full Idle Power | 20 Watts | 20 Watts | 21 Watts | 21 Watts | 23 Watts |
Search | 6 Watts | 6 Watts | 6 Watts | 6 Watts | 6 Watts |
Typical Efficiency | 90% | 92% | 92% | 92% | 93% |
Typical Total Harmonic Distortion | 2% | 2% | 2% | 2% | 2% |
Maximum | 5% | 5% | 5% | 5% | 5% |
Output Voltage Regulation | 2% | 2% | 2% | 2% | 2% |
Peak Maximum Output Current | 56 amps AC | 70 amps AC | 56 amps AC | 56 amps AC | 70 amps AC |
RMS | 40 amps AC | 50 amps AC | 40 amps AC | 40 amps AC | 50 amps AC |
Surge AC Overload Capability | 4800 VA | 6000 VA | 4800 VA | 4800 VA | 6000 VA |
5 Second | 4000 VA | 5000 VA | 4000 VA | 4000 VA | 5000 VA |
30 Minutes | 3200 VA | 4000 VA | 4000 VA | 4000 VA | 4000 VA |
AC Input Current Maximum | 30 amps AC | 30 amps AC | 30 amps AC | 30 amps AC | 30 amps AC |
AC Input Voltage Range (MATE Adjustable) | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC |
AC Input Frequency Range | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz |
Neutral-Ground Bond Switching | Yes | Yes | Yes | Yes | Yes |
DC Input Range | 10.5 to 17.0 VDC | 21.0 to 34.0 VDC | 28.0 to 45.3 VDC | 31.5 to 51.0 VDC | 42.0 to 68.0 VDC |
Continuous Battery Charge Output | 125 amps DC | 85 amps DC | 45 amps DC | 45 amps AC | 45 amps DC |
Temperature Range Rated | 0 to 50 (power derated above 25) | 0 to 50 (power derated above 25) | 0 to 50 (power derated above 25) | 0 to 50 (power derated above 25) | 0 to 50 (power derated above 25) |
Maximum | -25C to 60C | -25C to 60C | -25C to 60C | -25C to 60C | -25C to 60C |
Warranty | Standard 5 year | Standard 5 year | Standard 5 year | Standard 5 year | Standard 5 year |
Unit Weight | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) |
Shipping | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) |
Unit Dimensions (H x W x L) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
Shipping | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) |
