Home Outback Power Outback Inverter Chargers Outback Power, VFX3524M, Mobile vented inverter/charger, 3.5 kW, 24 VDC, 120 VAC, 60 Hz, 85 Amp charger, 30 Amp AC input (DC Cover and RTS included)

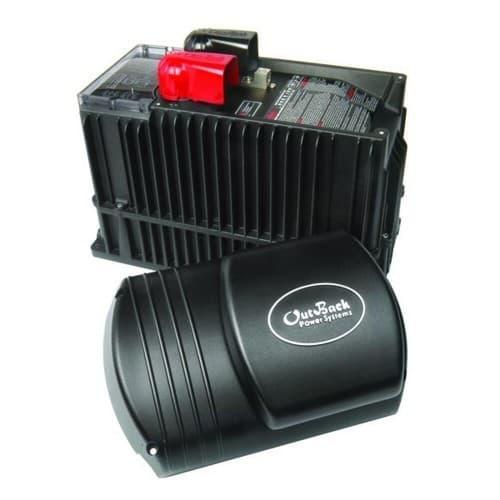

Outback Power, VFX3524M, Mobile vented inverter/charger, 3.5 kW, 24 VDC, 120 VAC, 60 Hz, 85 Amp charger, 30 Amp AC input (DC Cover and RTS included)

Outback Power, VFX3524M, Mobile vented inverter/charger, 3.5 kW, 24 VDC, 120 VAC, 60 Hz, 85 Amp charger, 30 Amp AC input (DC Cover and RTS included)

  • Model: VFX3524M
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: May 20th - May 26th
  • In Stock
  • Out of Stock
  • Price: $3,067.43  $2,359.56
    Would you like to add these items to your order?
    Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $246.14  $189.34

    Outback Power, MATE, G/FX version, Gray oval housing with RS232 serial port  $439.74  $338.26

    Outback Power, MATE2, G/FX version, Black square housing with RS232 serial port  $550.40  $423.38

    Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $748.06  $575.43

    Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $468.64  $360.49

    OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.

    Product Highlights
    • True sine wave output
    • Intelligent battery charging
    • High operating efficiency
    • Corrosion-resistant internal components
    • Integrated network communications
    • Standard 5-year warranty
    • Product Specifications | Download
    • Product Manual | Download
    Vented ModelsVented ModelsVented ModelsVented ModelsVented Models
    VFX2812MVFX3524MVFX3232MVFX3236MVFX3648M
    Nominal DC Input Voltage12 VDC24 VDC32 VDC36 VDC48 VDC
    Continuous Power Rating at 25 C2800 VA3500 VA3200 VA3200 VA3600 VA
    AC Voltage/Frequency120 VAC 60 Hz120 VAC 60 Hz120 VAC 60 Hz120 VAC 60Hz120 VAC 60Hz
    Continuous AC RMS Output at 25 C23.3 amps AC29.2 amps AC26.6 amps AC26.6 amps AC30.0 amps AC
    Full Idle Power 20 Watts 20 Watts 21 Watts 21 Watts 23 Watts
    Search 6 Watts 6 Watts 6 Watts 6 Watts 6 Watts
    Typical Efficiency90%92%92%92%93%
    Typical Total Harmonic Distortion2%2%2%2%2%
    Maximum5%5%5%5%5%
    Output Voltage Regulation 2% 2% 2% 2% 2%
    Peak Maximum Output Current56 amps AC70 amps AC56 amps AC56 amps AC70 amps AC
    RMS40 amps AC50 amps AC40 amps AC40 amps AC50 amps AC
    Surge AC Overload Capability4800 VA6000 VA4800 VA4800 VA6000 VA
    5 Second4000 VA5000 VA4000 VA4000 VA5000 VA
    30 Minutes3200 VA4000 VA4000 VA4000 VA4000 VA
    AC Input Current Maximum30 amps AC30 amps AC30 amps AC30 amps AC30 amps AC
    AC Input Voltage Range (MATE Adjustable)80 to 150 VAC80 to 150 VAC80 to 150 VAC80 to 150 VAC80 to 150 VAC
    AC Input Frequency Range54.0 to 66.0 Hz54.0 to 66.0 Hz54.0 to 66.0 Hz54.0 to 66.0 Hz54.0 to 66.0 Hz
    Neutral-Ground Bond SwitchingYesYesYesYesYes
    DC Input Range10.5 to 17.0 VDC21.0 to 34.0 VDC28.0 to 45.3 VDC31.5 to 51.0 VDC42.0 to 68.0 VDC
    Continuous Battery Charge Output125 amps DC85 amps DC45 amps DC45 amps AC45 amps DC
    Temperature Range Rated 0 to 50 (power derated above 25)0 to 50 (power derated above 25)0 to 50 (power derated above 25)0 to 50 (power derated above 25)0 to 50 (power derated above 25)
    Maximum -25C to 60C-25C to 60C-25C to 60C-25C to 60C-25C to 60C
    Warranty Standard 5 yearStandard 5 yearStandard 5 yearStandard 5 yearStandard 5 year
    Unit Weight 61 lbs (28 kg)61 lbs (28 kg)61 lbs (28 kg)61 lbs (28 kg)61 lbs (28 kg)
    Shipping 67 lbs (31 kg)67 lbs (31 kg)67 lbs (31 kg)67 lbs (31 kg)67 lbs (31 kg)
    Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm)13 x 8.25 x 16.25" (33 x 21 x 41 cm)
    Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)21.75 x 13 x 22" (55 x 33 x 56 cm)
