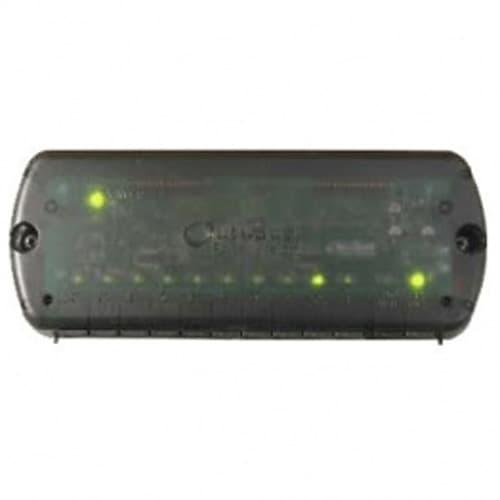

Outback, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE

Outback, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE

Model: HUB10.3

Manufactured by: Outback Power

Condition: New

Estimated Delivery:

In Stock

Price: $385.06 $296.20

The HUB system communications manager is the backbone of your networked OutBack power conversion system. The OutBack HUB communicates stacking, load share and power save on/off signals. Interconnection cabling is standard Ethernet CAT5 with RJ45 modular jacks. Through the use of a HUB, your system is completely coordinated and managed by the MATE.

Product Highlights

Communication stacking
Load share and power save on/off signals
Standard interconnection cabling
Ethernet CAT5 with RJ45 modular jacks
HUB4 & HUB10 - Installation and User Guide | Download
HUB10.3 - Quick Start Guide | Download
HUB10.3 - Declaration of Conformity | Download

	HUB4	HUB10
Number of Ports	4 Plus MATE	10 Plus MATE
Unit Weight	1 lb (.5 kg)	1 lb (.5 kg)
Shipping	3 lbs (1.4 kg)	3 lbs (1.4 kg)
Unit Dimensions (H x W x L)	10.5 x 6.25 x 1.27" (27 x 16 x 3 cm)	10.5 x 6.25 x 1.27" (27 x 16 x 3 cm)
Shipping	12 x 6 x 5" (31 x 15 x 13 cm)	12 x 6 x 5" (31 x 15 x 13 cm)

Product Reviews

Other Products in This Category

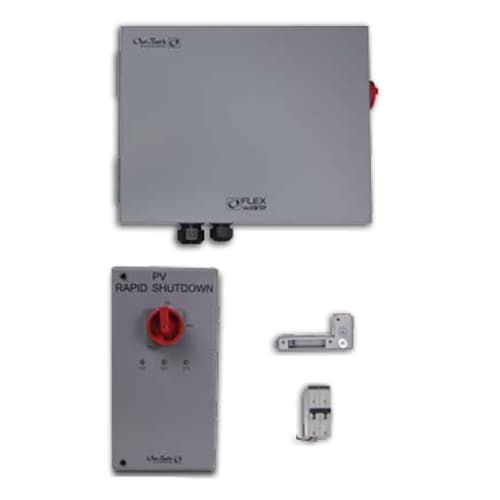

Outback, ICSPLUS-4, ICS Plus PV rapid shutdown and AFCI system package for battery-based PV systems. Compatible with up to twenty-four strings of PV source circuits (four charge controllers). Includes four FWPV6-FH600-SDA combiner boxes, one RSI, one BKR-CTRL-DC and one PNL-75Q-DC-RT.
