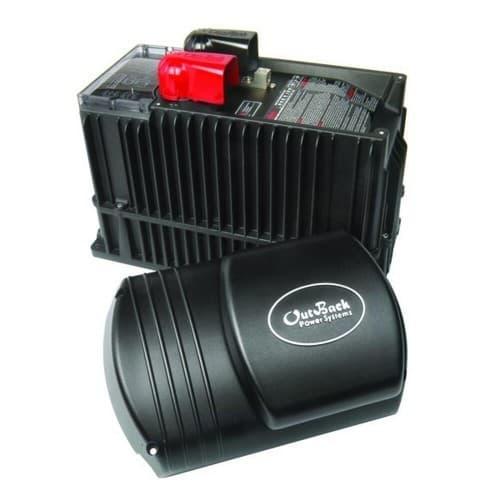

OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.
Product Highlights- True sine wave output
- Intelligent battery charging
- Modular stackable design
- Weather-resistant sealed chassis
- Corrosion-resistant internal components
- Standard 5-year warranty
- Product Specifications | Download
- Product Manual | Download
| | Sealed Models | Sealed Models | Sealed Models | Sealed Models | Sealed Models |
|---|
| | FX2012MT | FX2524MT | FX2532MT | FX2536MT | FX3048MT |
|---|
| Nominal DC Input Voltage | 12 VDC | 24 VDC | 32 VDC | 36 VDC | 48 VDC |
| Continuous Power Rating at 25 C | 2000 VA | 2500 VA | 2500 VA | 2500 VA | 3000 VA |
| AC Voltage/Frequency | 120 VAC 60 Hz | 120 VAC 60 Hz | 120 VAC 60 Hz | 120 VAC 60 Hz | 120 VAC 60 Hz |
| Continuous AC RMS Output at 25 C | 17.0 amps AC | 20.8 amps AC | 20.8 amps AC | 20.8 amps AC | 25.0 amps AC |
| Full Idle Power | 20 Watts | 20 Watts | 21 Watts | 21 Watts | 23 Watts |
| Search | 6 Watts | 6 Watts | 6 Watts | 6 Watts | 6 Watts |
| Typical Efficiency | 90% | 92% | 92% | 92% | 93% |
| Typical Total Harmonic Distortion | 2% | 2% | 2% | 2% | 2% |
| Maximum | 5% | 5% | 5% | 5% | 5% |
| Output Voltage Regulation | 2% | 2% | 2% | 2% | 2% |
| Peak Maximum Output Current | 56 amps AC | 70 amps AC | 56 amps AC | 56 amps AC | 70 amps AC |
| RMS | 40 amps AC | 50 amps AC | 40 amps AC | 40 amps AC | 50 amps AC |
| Surge AC Overload Capability | 4800 VA | 6000 VA | 4800 VA | 4800 VA | 6000 VA |
| 5 Second | 4000 VA | 4800 VA | 4000 VA | 4000 VA | 4800 VA |
| 30 Minutes | 2500 VA | 3200 VA | 2500 VA | 2500 VA | 3200 VA |
| AC Input Current Maximum | 30 amps AC | 30 amps AC | 30 amps AC | 30 amps AC | 30 amps AC |
| AC Input Voltage Range (MATE Adjustable) | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC | 80 to 150 VAC |
| AC Input Frequency Range | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz | 54.0 to 66.0 Hz |
| Neutral-Ground Bond Switching | Yes | Yes | Yes | Yes | Yes |
| DC Input Range | 10.5 to 17.0 VDC | 21.0 to 34.0 VDC | 28.0 to 45.3 VDC | 31.5 to 51.0 VDC | 42.0 to 68.0 VDC |
| Continuous Battery Charge Output | 80 amps DC | 55 amps DC | 35 amps DC | 35 amps DC | 35 amps DC |
| Temperature Range Rated | 0C to 50C (power derated above 25C) | 0C to 50C (power derated above 25C) | 0C to 50C (power derated above 25C) | 0C to 50C (power derated above 25C) | 0C to 50C (power derated above 25C) |
| Maximum | -25C to 60C | -25C to 60C | -25C to 60C | -25C to 60C | -25C to 60C |
| Warranty | Standard 5 year | Standard 5 year | Standard 5 year | Standard 5 year | Standard 5 year |
| Unit Weight | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) | 61 lbs (28 kg) |
| Shipping | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) | 67 lbs (31 kg) |
| Unit Dimensions (H x W x L) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) | 13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
| Shipping | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) | 21.75 x 13 x 22" (55 x 33 x 56 cm) |
| Certifications | ETL Listed to UL458 | ETL Listed to UL458 | ETL Listed to UL458 | ETL Listed to UL458 | ETL Listed to UL458 |
