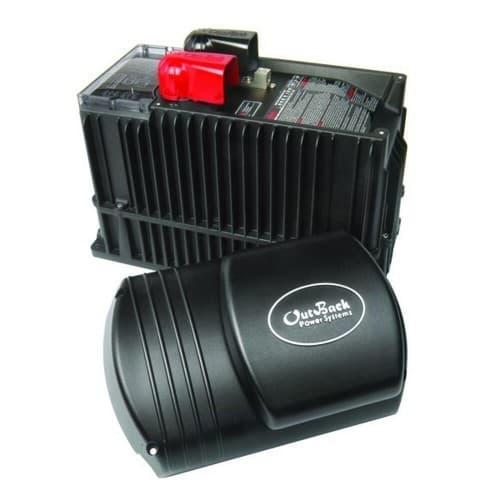

OutBack's Mobile and Marine inverter/charger provides the high performance and reliability you need no matter where your travels take you. Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time, as well as for many years to come.

Product Highlights

• True sine wave output
• Intelligent battery charging
• Modular stackable design
• Weather-resistant sealed chassis
• Corrosion-resistant internal components
• Standard 5-year warranty
• Product Specifications | Download
• Product Manual | Download

	Sealed Models					Sealed Models	Sealed Models	Sealed Models	Sealed Models
		FX2012MT	FX2524MT	FX2532MT	FX2536MT	FX3048MT
Nominal DC Input Voltage	12 VDC	24 VDC	32 VDC	36 VDC	48 VDC
Continuous Power Rating at 25 C	2000 VA	2500 VA	2500 VA	2500 VA	3000 VA
AC Voltage/Frequency	120 VAC 60 Hz	120 VAC 60 Hz	120 VAC 60 Hz	120 VAC 60 Hz	120 VAC 60 Hz
Continuous AC RMS Output at 25 C	17.0 amps AC	20.8 amps AC	20.8 amps AC	20.8 amps AC	25.0 amps AC
Full Idle Power	20 Watts	20 Watts	21 Watts	21 Watts	23 Watts
Search	6 Watts	6 Watts	6 Watts	6 Watts	6 Watts
Typical Efficiency	90%	92%	92%	92%	93%
Typical Total Harmonic Distortion	2%	2%	2%	2%	2%
Maximum	5%	5%	5%	5%	5%
Output Voltage Regulation	2%	2%	2%	2%	2%
Peak Maximum Output Current	56 amps AC	70 amps AC	56 amps AC	56 amps AC	70 amps AC
RMS	40 amps AC	50 amps AC	40 amps AC	40 amps AC	50 amps AC
Surge AC Overload Capability	4800 VA	6000 VA	4800 VA	4800 VA	6000 VA
5 Second	4000 VA	4800 VA	4000 VA	4000 VA	4800 VA
30 Minutes	2500 VA	3200 VA	2500 VA	2500 VA	3200 VA
AC Input Current Maximum	30 amps AC	30 amps AC	30 amps AC	30 amps AC	30 amps AC
AC Input Voltage Range (MATE Adjustable)	80 to 150 VAC	80 to 150 VAC	80 to 150 VAC	80 to 150 VAC	80 to 150 VAC
AC Input Frequency Range	54.0 to 66.0 Hz	54.0 to 66.0 Hz	54.0 to 66.0 Hz	54.0 to 66.0 Hz	54.0 to 66.0 Hz
Neutral-Ground Bond Switching	Yes	Yes	Yes	Yes	Yes
DC Input Range	10.5 to 17.0 VDC	21.0 to 34.0 VDC	28.0 to 45.3 VDC	31.5 to 51.0 VDC	42.0 to 68.0 VDC
Continuous Battery Charge Output	80 amps DC	55 amps DC	35 amps DC	35 amps DC	35 amps DC
Temperature Range Rated	0C to 50C (power derated above 25C)					0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)	0C to 50C (power derated above 25C)
Maximum	-25C to 60C					-25C to 60C	-25C to 60C	-25C to 60C	-25C to 60C
Warranty	Standard 5 year					Standard 5 year	Standard 5 year	Standard 5 year	Standard 5 year
Unit Weight	61 lbs (28 kg)					61 lbs (28 kg)	61 lbs (28 kg)	61 lbs (28 kg)	61 lbs (28 kg)
Shipping	67 lbs (31 kg)					67 lbs (31 kg)	67 lbs (31 kg)	67 lbs (31 kg)	67 lbs (31 kg)
Unit Dimensions (H x W x L)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)					13 x 8.25 x 16.25" (33 x 21 x 41 cm)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)
Shipping	21.75 x 13 x 22" (55 x 33 x 56 cm)					21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)	21.75 x 13 x 22" (55 x 33 x 56 cm)
Certifications	ETL Listed to UL458					ETL Listed to UL458	ETL Listed to UL458	ETL Listed to UL458	ETL Listed to UL458
