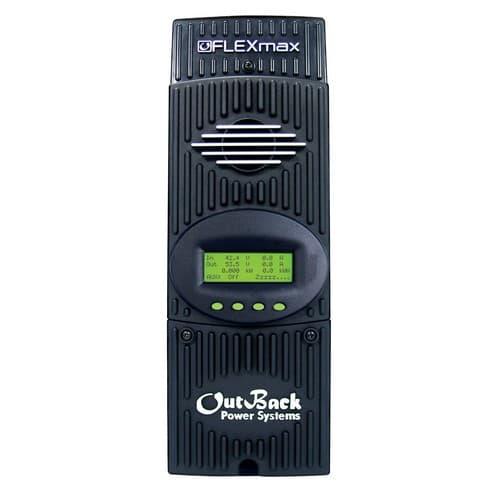

Outback Flexmax 80 MPPT Solar Charge Controller


Security Seals
  • Model: FLEXMAX 80
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Apr 24th - Apr 30th
  • In Stock
  • Price: $590.23  $472.19
    Save: 20% off
    Payments:
    The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104F (40C).

    Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.

    FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

    Product Highlights
    • Maximum Power Point Tracking (MPPT)
    • Active cooling and intelligent thermal management cooling
    • Ambient temperatures as high as 104F (40C)
    • Built-in, backlit 80 character display
    • Integrated OutBack network communications
    • Product Specifications | Download
    • Product Manual | Download
     FLEXmax 80 SpecificationsFLEXmax 60 Specifications
    Nominal Battery Voltages12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up)12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up)
    Maximum Output Current80 amps @ 104 F (40C) with adjustable current limit60 amps @ 104 F (40C) with adjustable current limit
    Maximum Solar Array STC Nameplate12 VDC systems 1250 Watts / 24 VDC systems 2500 Watts / 48 VDC systems 5000 Watts / 60 VDC systems 6250 Watts12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts
    NEC Recommended Solar Array STC Nameplate12 VDC systems 1000 Watts / 24 VDC systems 2000 Watts / 48 VDC systems 4000 Watts / 60 VDC Systems 5000 Watts12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts
    PV Open Circuit Voltage (VOC)150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
    Standby Power ConsumptionLess than 1 Watt typicalLess than 1 Watt typical
    Power Conversion Efficiency97.5% @ 80 Amps in a 48 VDC System - Typical98.1% @ 60 Amps in at 48 VDC System voltage - Typical
    Charging RegulationFive Stages: Bulk, Absorption, Float, Silent and EqualizationFive Stages: Bulk, Absorption, Float, Silent and Equalization
    Voltage Regulation Set points10 to 80 VDC user adjustable with password protection10 to 80 VDC user adjustable with password protection
    Equalization ChargingProgrammable Voltage Setpoint and Duration - Automatic Termination when completedProgrammable Voltage Setpoint and Duration - Automatic Termination when completed
    Battery Temperature CompensationAutomatic with optional RTS installed / 5.0 mV per C per 2V battery cellAutomatic with optional RTS installed / 5.0 mV per C per 2V battery cell
    Voltage Step-Down CapabilityCan charge a lower voltage battery from a higher voltage PV array - Max 150 VDC inputCan charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input
    Programmable Auxilary Control Output12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
    Status Display3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total
    Remote Display and ControllerOptional Mate or Mate2 with RS232 Serial Communications PortOptional Mate or Mate2 with RS232 Serial Communications Port
    Network CabelingProprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
    Data LoggingLast 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of productionLast 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production
    Hydro Turbine ApplicationsConsult factory for approved TurbinesConsult factory for approved Turbines
    Positive Ground ApplicationsRequires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)
    Operating Temperature RangeMinimum -40 to maximum 60 C (Power capacity of the controller is automatically derated when operated above 40 C)Minimum -40 to maximum 60 C (Power capacity of the controller is automatically derated when operated above 40 C)
    Environmental RatingIndoor Type 1Indoor Type 1
    Conduit KnockoutsOne 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottomOne 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottom
    WarrantyStandard 5 year / Available 10 YearStandard 5 year / Available 10 Year
    Weight - Unit12.20 lbs (5.56 kg)11.65 lbs (5.3 kg)
                - Shipping15.75 lbs (7.10 kg)14.55 lbs (6.4 kg)
    Dimensions - Unit16.25" x 5.75" x 4" (41.3 x 14 x 10 cm) - (H x W x D)13.5 x 5.75 x 4" (40 x 14 x 10 cm)
                       - Shipping21" x 10.5" x 9.75" (53 x 27 x 25 cm)18 x 11 x 8" (46 x 30 x 20 cm)
    OptionsRemote Temperature Sensor (RTS), HUB 4, HUB 10, MATE, MATE 2Remote Temperature Sensor (RTS), HUB 4, HUB 10, MATE, MATE 2
    Menu LanguagesEnglish & SpanishEnglish & Spanish
