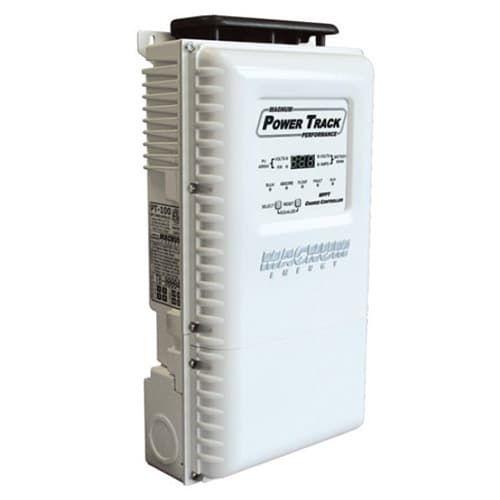

The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries. The PT-100s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.

Features

• MPPT: Maximum Power Point Tracking technology for increased PV power output efficiency.
• Multi-state Charging: Maximizes system performance and improves battery life.
• Optimal Battery Charging: Automatic battery temperature compensation using an included external temperature sensor for optimum battery charging, even during extreme temperature changes.
• Voltage Options: Compatible with 12, 24, or 48V battery systems with automatic detection of system voltage.
• GFDI: Integrated PV GroundFault Detection and Interruption/ Indication, with pre-fault leakage/ diagnostic metering.
• Extensive Electronic Protection: Over-temperature protection, power derating when temperature is high, PV short circuit and high PV input shutdown, output overcurrent protection and night-time back-feed (reverse current) protection.
• Support a Large PV Array: A single controller supports a large PV array up to 6600W.
• High Efficiency: The PT-100 provides higher than 99% conversion efficiency and uses less than two watts of power in nighttime mode.
• LED Indicators and Screen: Multiple LED indicators and large digital LED screen on front panel for easy-to-read system information.
• AFCI: An integrated PV Arc-Fault Circuit Interrupter detects, indicates, and extinguishes series arcs. The AFCI is designed to meet the new National Electric Code (NEC) Article 690.11 requirements.
• Convenient Installation: Run all of the wiring to the unique, remain-inplace wiring box with ease prior to installing the full PT-100 unit.
• On-site Updates: The PT-100s software can be updated on site.
• Easy MP and MMP integration: The PT-100 is designed to work with a Magnum Panel (MP) or MiniMagnum Panel (MMP). It provides room and access to PV and battery disconnect breakers.
• Product Manual | Download
• Product Specifications | Download

Even More Functionality with the Optional Remote

• Built-in programmable auxiliary relay for device control
• Internal data logging functionality keeps energy harvest information and battery Ahr/Whr data up to 255 days. Use the optional remote to display this information.
