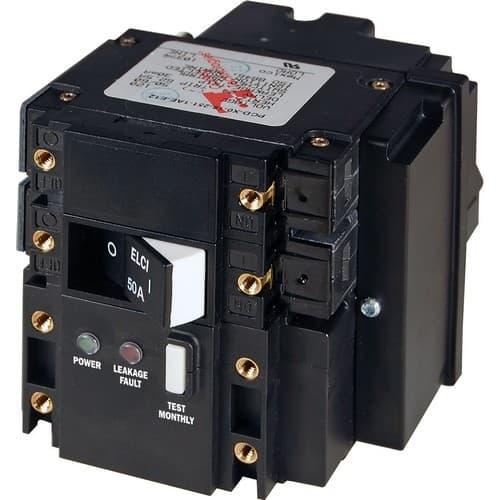

Blue Sea Systems, 3103, C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Name: Blue Sea Systems, 3103, C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Brand: Blue Sea Systems
SKU: 5357
Price: 409.54 USD
Availability: InStock

Model: 3103

GTIN: 00632085031039

Manufactured by: Blue Sea Systems

Condition: New

Estimated Delivery:

Lead Time To Ship May Vary

Price: $532.40 $409.54

Features

Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
Meets UL 1500 external ignition protection requirements
Trips on short circuit, overload, or leakage to ground
Front panel mount installed in a power distribution panel
Instructions

Specifications
Amperage	50A
Actuator Style	Flat Rocker
Nominal Voltage	120V AC per pole
Poles	2
Ignition Protected	Yes
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	5000A
Minimum Operating Temperature	-35 C
Maximum Operating Temperature	66 C
Leakage Trip Amps	30mA
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.85lb (0.39 kg)
