The images shown are for illustration purposes only and may not be an exact representation of the product

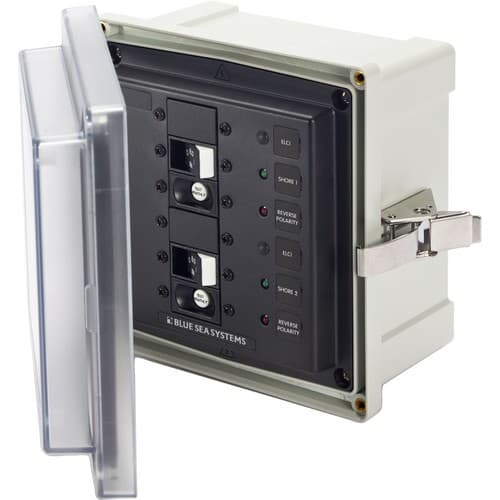

Panel enclosure for ELCI Main circuit breakers and otherlarge frame devices. Meets ABYC E-11 when used with anELCI Main circuit breaker and mounted within 10 feet ofthe shore power inlet
Features- Includes one Dual 120V AC / 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
- Cutout Templates
- Instructions
Specifications | Minimum Operating Temperature | -40 C |
Maximum Operating Temperature | 85 C |
Cover Screws and Hardware | 10-32 Stainless Steel |
Enclosure Size | 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm) |
Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm) |
Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
Weight | 6.50lb (2.95 kg) |
Included | Qty | PN | Product |
2 | 3102100 | A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A |
4 | 3124 | SMS Enclosure Gland - PG7 for #14 to #10 Wire |
6 | 3125 | SMS Enclosure Gland PG16 |
2 | 8034 | LED - 120V AC Green |
2 | 8066 | LED - 120V AC Red |
2 | 6520-0580 | ELCI |
2 | 6520-0360 | REVERSE POLARITY |
Optional Accessories | SMS Enclosure Gland PG29 |
