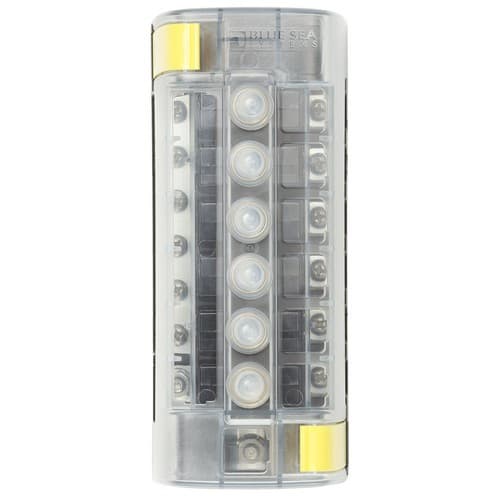

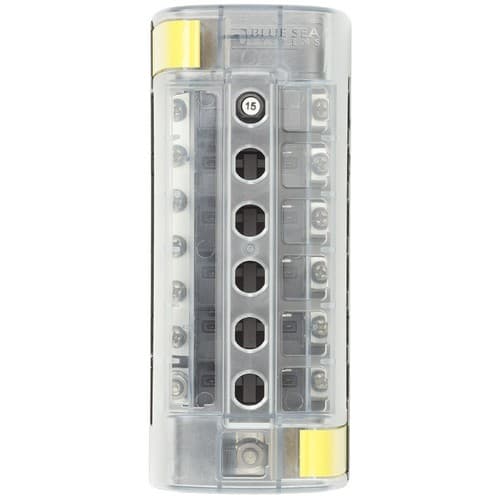

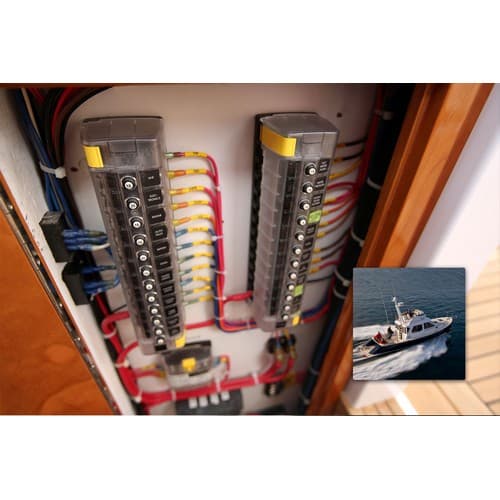

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Features- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals

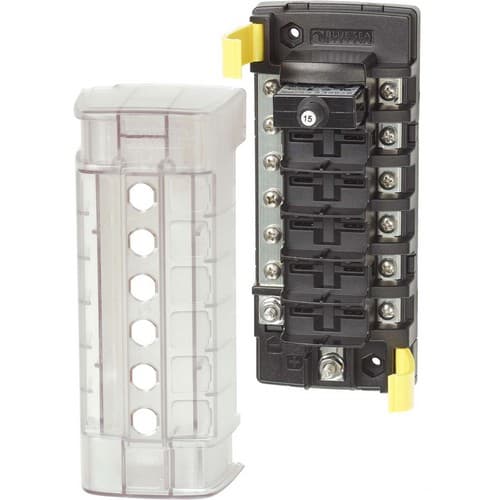

- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
- Dimensioned Drawing | Download
| Specifications |
|---|
| Circuits | 6 |
| Maximum Amperage | 100A (per block)32A (per circuit) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Source | Common Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 5.63in (143 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 6.69in (169.93 mm) |
| Weight | 0.75lb (0.34 kg) |
| Optional Accessories |
|---|
| 4135 | Push Button Reset Only Circuit Breaker Boot - Clear |
| 4215 | Waterproof DC Label Kit - 30 Black Square Labels V1 |
| 4216 | Waterproof DC Label Kit - 60 Black Square Labels |
| 4217 | Waterproof DC Label Kit - 120 Black Square Labels |
| 4218 | Waterproof DC Label Kit - 30 Black Square Labels V2 |
| 5049 | ST CLB Circuit Breaker Block Jumper |
| 7050 | Push Button Reset Only Quick Connect Circuit Breaker - 3 Amps |
| 7052 | Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps |
| 7053 | Push Button Reset Only Quick Connect Circuit Breaker - 7 Amps |
| 7054 | Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps |
| 7056 | Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps |
| 7057 | Push Button Reset Only Quick Connect Circuit Breaker - 20 Amps |
| 7058 | Push Button Reset Only Quick Connect Circuit Breaker - 25A |
| 7059 | Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps |
| 7061 | Push Button Reset Only Quick Connect Circuit Breaker - 40A |
