Blue Sea Systems, 5051, ST CLB Circuit Breaker Block - 12 Independent Circuits

  • Model: 5051
  • GTIN: 00632085050511
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$130.52 $100.40

Manufacturer Info

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

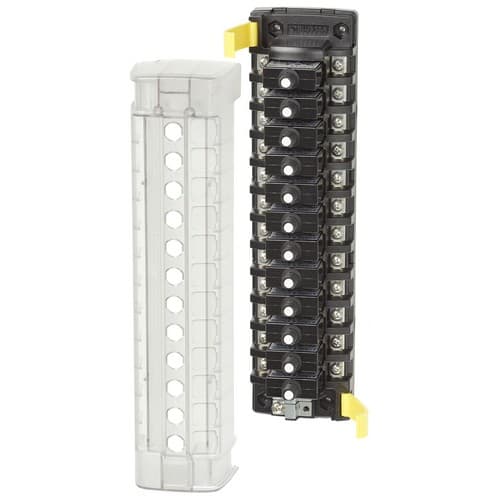

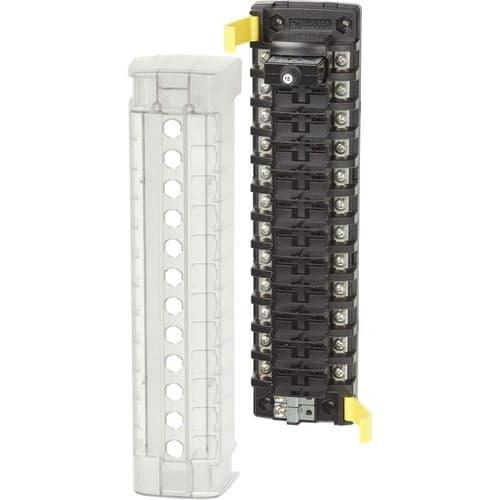

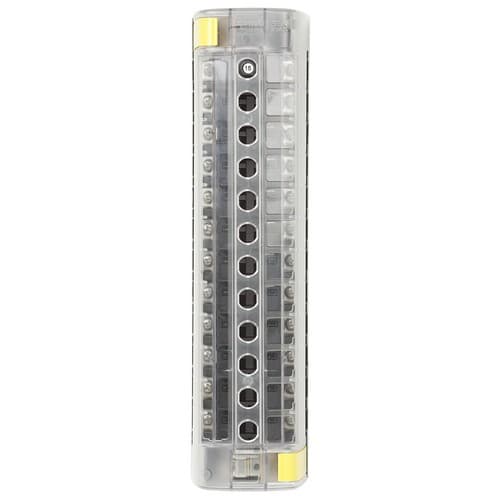

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

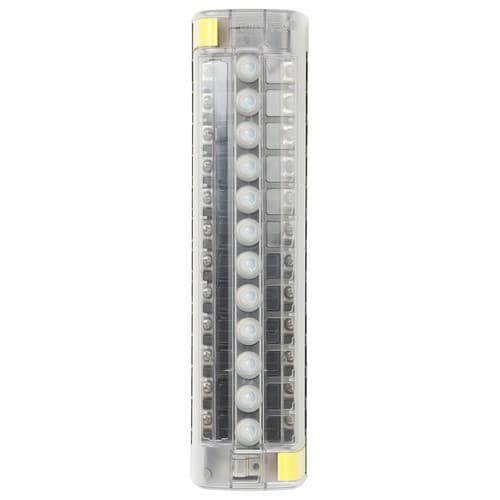

  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels
  • Dimensioned Drawing
Specifications
Circuits12
Maximum Amperage32A (per circuit)40A (per jumped circuit group)
Maximum Voltage32V DC
Mounting#8 Screw (M4) or #8 Nut
Negative Bus#10-32 Stud
SourceIndependent Source
Minimum Operating Temperature-10 C
Maximum Operating Temperature60 C
Mounting Centers10.13in (257.3 mm)
Screw Terminal Type#8-32 Screws with Captive Star Lock Washer
Height11.19in (284.23 mm)
Weight1.50lb (0.68 kg)
