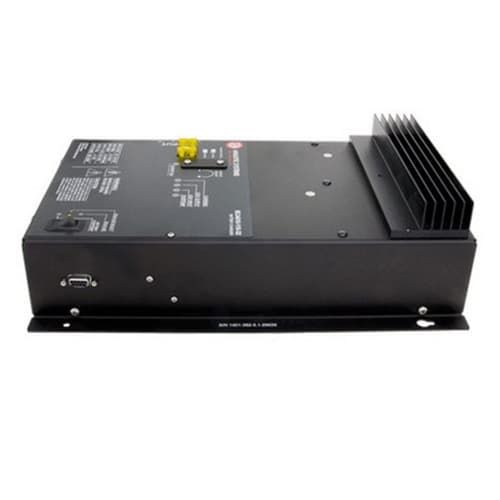

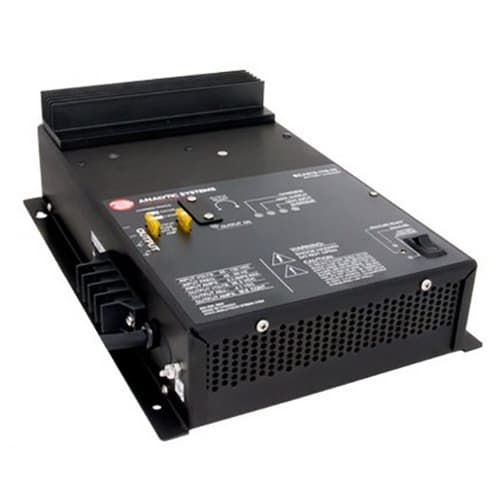

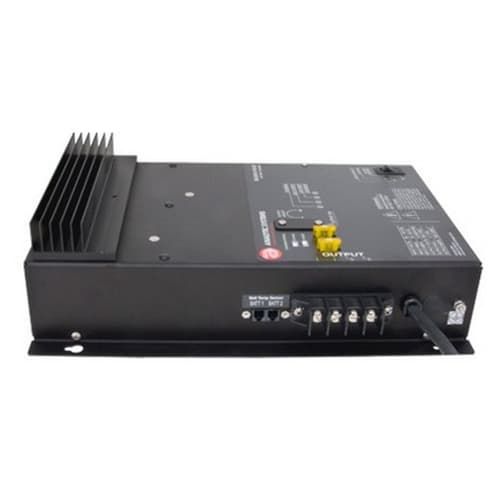

The BCA610 battery charger provides up to 600 watts to charge a 12, 24, 32, or 48 Volt battery system (1, 2 or Optional 3 banks) from a 110 or 220VAC source. The batteries must share a common ground.

This all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and an equalize charging cycle. Safety features include both charger and battery over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery hook-up protection, a dry contact alarm relay output and output overvoltage crowbar.

Optional features include a Digital Volt/Ammeter, 3-Bank Charging, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this AC Battery Charger.

Features

• Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
• Extremely rugged and well suited for marine and other demanding environments
• High tolerance for shock and vibration
• Ultra-quiet low EMI operation
• Can be left permanently connected
• Can function as a power supply
• User selectable 2 or 3 stage charging profile
• Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
• Over-temperature shutdown
• Temperature compensated charging
• Short circuit protection
• Output over-voltage crowbar
• Inrush Current Limiting with solid state bypass
• Dry contact output fail relay
• 3 year parts and labour warranty
• Product Specifications | Download
• Product Manual | Download

Applications

• Marine & other rugged environments
• Automotive / RV
• Electric Utilities and Substations
• Base Station Power(Radio & Telecommunications)
• OEM Applications
• Field Work / Construction Sites
• Solar Power Systems
• Emergency Power Backup (UPS)
• Security Systems
• Charge any 12, 24, 32, or 48 Volt Battery System

Nominal Vac (ip)	110	220
Actual (Vac)	90-130	180-260
Input Amps (Max)	9.3	4.7
Input Circuit Breaker	10A	5A
Input Frequency	45-65 Hz
Noise on Input	< 50mV

Output Nominal (op)	12	24	32	48
Output Volts (DC)	13.6 0.05	27.2 0.05	36.3 0.05	54.4 0.05
Absorption Voltage (Vdc)	14.4	28.8	38.4	57.6
Charging Amps	40	22	16.5	11
Absorption to Float(15%)	6.0Amps	3.3Amps	2.48Amps	1.65Amps
Output Adjustment(Vdc)	1.0V
Output Fuses(AGC)	40Amp x2	30Amp x2	20Amp x2	15Amp x2
Battery Banks	1 or 2 (3 Bank Option Available)
Battery Size( Amp Hrs.)	160-240	88-132	66-99	44-66
Output Crowbar	16.0 0.5V	32.0 1.0V	42.7 1.3V	63.9 2.0V
Output Ripple & Noise	< 50 mV
Regulation (Line & Load)	< +/- 0.5%
Temperature Comp.	-30 mV/C	-60 mV/C	-80 mV/C	-120 mV/C
Duty Cycle	Continuous 100% for 24 hours per day
Efficiency	> 75% @ Maximum Output
Stages	2 or 3 (user selectable)

Operating Temp. Range	-25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.)
Humidity	0 - 95% Relative Humidity(non-condensing) with optional conformal coating
Audible Noise	NONE - 0db @ 3 ft
Typical Service Life	>10 years (87,600 hours)
Isolation	Input-Case & input-output 1500VDC Output - Case 500VDC(1500VDC @ 48V O/P)

Length	14.5 in/ 36.8 cm
Width	9.9 in/ 25.1 cm
Height	3.0 in/ 7.6 cm
Clearance	1 inch (2.5 cm) all around
Material	Marine Grade Aluminium
Finish	Black Anodize / Powder Epoxy Coat
Fastenings	All 18-8 Stainless Steel
Weight	7.2 lb / 3.3 kg
Warranty	3 years
Safety	Designed to meet CSA 22.2.107.1 & UL458
