The images shown are for illustration purposes only and may not be an exact representation of the product

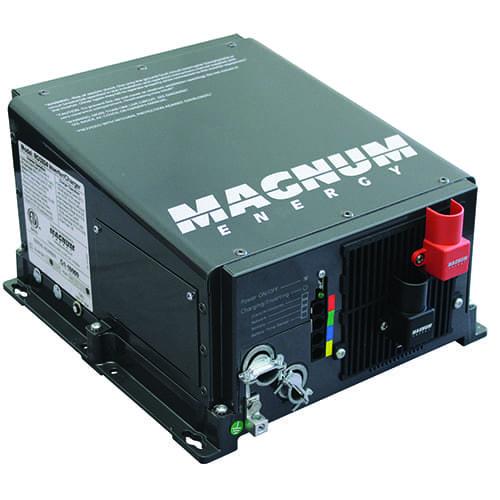

Magnum Energy, RD3924, 3900 Watt, 24V Inverter/105 Amp PFC Charger

  • Model: RD3924
  • Manufactured by: Magnum Energy
  • Condition: New
  • This product is currently on backorder.
    Expected Ship Date: Monday 01 July, 2024
Price:

$1,972.70 $1,517.46

Would you like to add these items to your order?
Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt)  $223.34 $171.80

Magnum Energy, ME-ARC50, Advanced Remote Digital LCD Display Remote Panel with 50' Cable  $338.88 $260.68

Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version (Must be Connected to a Magnum Inverter  $335.96 $258.43

Manufacturer Info

The RD Series Inverter / Charger is a new generation modified sine wave inverter designed specifically for renewable energy use. The RD Series is powerful, easy-to-use, and best of all, cost effective.

Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.

Safe and reliable: The RD Series is ETL Listed to the stringent requirements of UL 1741 (USA only), ensuring that the inverter is safe and reliable.

Easy-to-install: Install the RD Series in four easy steps: simply connect the inverters output to your distribution circuits or electrical panel, connect your power cable (AC) to the inverters easy-to-reach terminal block, connect the batteries, and switch on the power.

Features
  • 12 and 24 volt models
  • Versatile mounting
  • Lightweight
  • Multiple ports
  • Accessible design
  • Convenient switches
  • Expanded transfer relay
  • Backed by a two-year(24-month) limited warranty
  • Product Manual | Download
  • Product Specifications | Download
Available For
  • Renewable Energy Systems
  • Off-grid Power
  • Back-up Power
Output Power3,900W
Peak Watts8,000W
Warranty2 Years
Output Voltage120 VAC
Output Peak66amps
Output Current32amps
Output WaveformQuasi Sine
Output Frequency60 Hz
Input Voltage24
Continuous Output Amps32amps
Operating Temp-20 C to +60 C (-4 F to 140 F)
Efficiency93%
Weight53 lb (24.0 kg)
Dimensions13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm)
UL CertifiedYes
PhaseSingle
TopologyLow Frequency
Input Voltage Range18 - 32 VDC
